Hiding a Sentence in a Compact Grid of Letters
All the words in the following quote can fit, Boggle-style, in a 4ｘ4 grid.
Space is to place as eternity is to time.
Try it yourself: set letters in the grid so that all words in the above quote are underlined. One cell can even be left blank, there are multiple solutions.

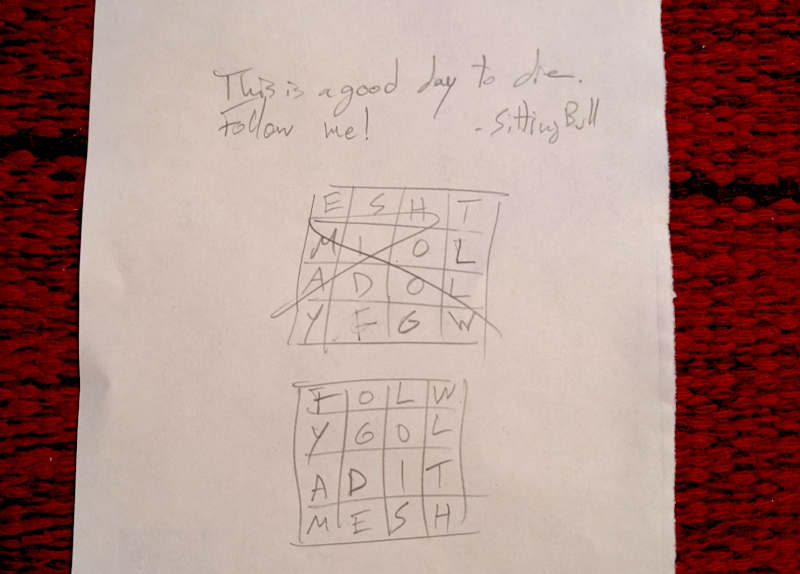

The first Gridograms were created with pencil and paper, trial and error, using heuristics you may have discovered by trying to fill the grid above. It can be a fun and frustrating challenge, a little like sudoku.
But how did we know that a 4ｘ4 grid was the right size for the quote?
Estimating Grid Size
Take the letters in “Space is to place as eternity is to time”, noting that T and E are needed twice to spell “eternity”:
ACEEILMNOPRSTTY
That’s 15 letters, and for this quote we indeed need 15 grid cells. We use 4ｘ4 rather than 5ｘ3 to keep Gridograms near square, as 𝑛ｘ𝑛 or 𝑛ｘ𝑛−1.
Often, however, this counting exercise only gives us a lower bound, not the exact number of cells needed. Let’s try another quote:
Thank heavens, the sun has gone in, and I don’t have to go out and enjoy it.
Letters used:
ADEEGHIJKNOSTUVY
That’s 16 letters, so another 4ｘ4 grid? Nope, that won’t be big enough to include all the words. Can you figure out a reason why, looking at how many different letters are next to the letter N in the quote? (I’ll come back to this.)
Why estimate grid size?
Grid size is one of the key criteria for deciding whether a quote can feature as a Gridogram. The majority of Gridograms are 4ｘ4 or 5ｘ4. An occasional 5ｘ5 makes the cut, but can take players significantly longer to solve — sometimes too long for what’s meant to be a fun casual daily game.
Large grids can also take significant amounts of time to find. We want to fit multiple words on paths in a grid, and a 4ｘ4 grid has 12,029,640 different paths. A 5ｘ5 grid has 115,066,382,913 paths. Yes, I have left an algorithm running for days trying to find a grid! But I have not yet tried a quote that needs a 6ｘ6 grid with 9,913,814,758,253,424 paths. [1]
So why can’t “Thank heavens, the sun has gone in, and I don’t have to go out and enjoy it” fit in a 4ｘ4 grid?
Cells in a grid corner connect with 3 others. Cells on the side connect with 5. Cells away from the sides have the most connections: 8.
The letter N in the quote is very friendly: it wants to be next to A, D, E, I, J, K, O, S, and U. That’s 9 different letters, more adjacencies than one grid cell can have!
So the grid will need more than one N. Updating the letter list to ADEEGHIJKNNOSTUVY gives us a new lower bound of 17 letters. The quote does indeed fit in a 5ｘ4 grid, you can try to create one below (3 cells can be left blank).
Thank heavens, the sun has gone in, and I don’t have to go out and enjoy it.
How can we programmatically take account of cases like this quote, to better estimate grid size? With undirected graphs!
Generating a Graph

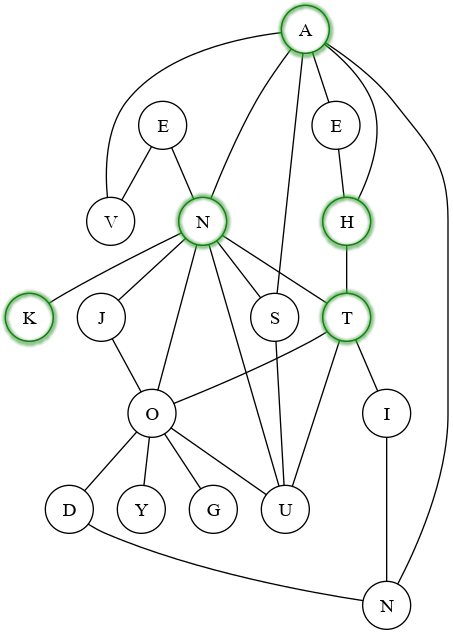

We can generate an undirected graph for the quote, so that each word can be made by starting at its first letter and tracing a path through connected letters, without visiting the same letter twice. Such a graph looks like this, with the letters for “thank” highlighted as an example:
Thank heavens, the sun has gone in, and I don’t have to go out and enjoy
it.
Because there are multiple nodes for the same letter, there are different ways to build the graph to include all the words. Investigating the space of all potential graphs is too computationally expensive, but we can guide the graph building process. For example, given “heaven” with two E nodes is in the graph, there are two options to connect “heaven” with the E in “the”, but we naturally select the E already connected to an H.
Given the goal is to estimate Gridogram size, we apply certain constraints when building a graph to exclude those that cannot be mapped to a grid. One constraint is that no node (letter) can have more than 8 edges, the most adjacencies one letter can have in a grid. This is why we end up with two Ns above, one with 8 edges and one with 3 edges, even though no individual word requires more than one N.
Let’s look at a different and non-obvious constraint, using a new quote and a new graph. The problematic letters are in red, can you see why they and their intermediate connections cannot be mapped to a grid?
Life is the flower for which love is the honey. — Victor Hugo

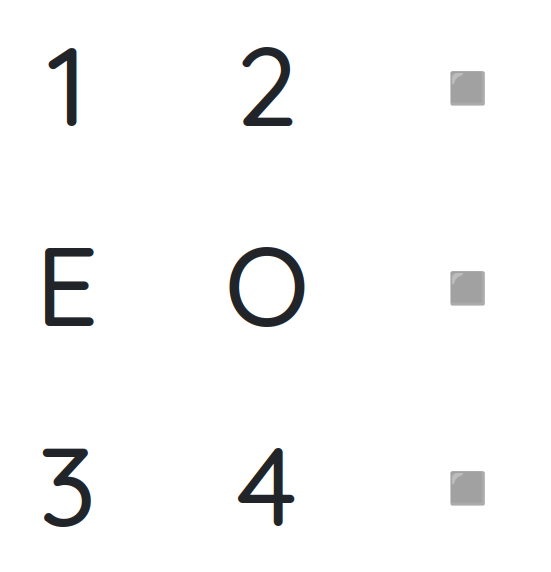

Look at the letters E and O in a grid:
It’s possible to trace 4 different paths with one cell between E and O: one path through each of the numbers. Each path can be reversed, that does not matter. What does matter is that 4 is the maximum, there is no way to place E and O differently to allow more than 4 paths with exactly one letter between them. [2]
The graph for the Victor Hugo quote has 5 letters immediately between E and O — EFO, ERO, ENO, EVO, and EWO — so this subgraph cannot be mapped to a grid. When building a graph, we actually prevent such subgraphs being created: instead we must add another node, which in this case could be any of E, F, O, R, N, V, or W.
Once a graph is generated satisfying all constraints, this gives an improved lower bound estimate on the number of letters needed: it still doesn’t give us the Gridogram, or even the exact letter count. It is still possible that the generated graph is not isomorphic to a subgraph of the grid graph, and I don’t know if further improvements to the estimate are possible with this approach. [3]
Estimating grid size with a graph is a quick way to rule out quotes that will not fit in a Gridogram. For remaining quotes that do have a chance of fitting, the computationally expensive brute force search for a corresponding letter grid then begins.
Upcoming sections: optimising a brute force grid search;
using AI to find a grid.
Next update expected December 2025.
