Envion – Algorithmic Dynatext Envelope Sequencer in Pure Data (Pd)

Algorithmic Dynatext Envelope Sequencer in Pure Data (Pd) developed by Emiliano Pennisi 2025

Envion is an ecosystem in Pure Data designed for algorithmic and procedural composition, musique concrète, and experimental sound processing. It includes tools for slicing, dynamic envelopes, texture generation, and multi-channel management.

Per years, I explored different systems for handling envelopes dynamically — starting with software like Composer Desktop Project, and later with hardware generators such as Zadar in the Eurorack world. I would like to emphasize how fascinating the world of envelope dynamics is, and how envelopes can imprint transformative tonal characteristics onto sounds. Out of this research, I developed Envion.

Envion is in continuous development.
Some aspects of this documentation may change over time.

If you notice inconsistencies, please open an issue on GitHub
or write an email to Emiliano Pennisi.

What it does: streams random audio atoms from the web and articulates them through Envion’s Dynatext envelopes.

Key points

• Random sources from freesound.org (drums) → each run generates 8 direct URLs.
• No local storage: the netsound/ folder only holds URL lists (one per line, each ending with ;).
• Loaded sounds inherit Envion patch parameters — dynamics, envelopes, modulation depth, and the last preset.
• Example preset: ÆTCHR (Autechre-inspired) — dense, percussive, and procedural.

Full guide, video & screenshots:
https://www.peamarte.it/env/envion_netaudio.html

ℹ️ Envion quick setup

With PlugData, cyclone and else are already included.
For the 3D scope you can (optionally) add: ggee, audiolab, simplex.

• cyclone — included in PlugData
• else — included in PlugData
• ggee - optional (for additional features)
• ceammc - optional (for additional features)
• simplex - optional (for 3D scope visualization)
• audiolab - optional (for enhanced audio features)

Open: Envion_v3.9_Plugdata.pd → play presets (bottom-right), tweak behavior, load new samples.

The core functionality of Envion works out-of-the-box on PlugData for iPadOS/iOS because cyclone and else libraries are built-in.

If you see dependency warnings when opening the patch on iPadOS:

• These warnings refer to optional libraries (ggee, ceammc, simplex, audiolab)
• You can safely ignore these warnings — the patch will work without them
• The optional libraries add extra features like 3D scope visualization, but are not required for core functionality
• Currently, installing external libraries on iPadOS/iOS is not supported through PlugData's interface

What works on iPadOS without additional libraries: ✅ All envelope sequencing and dynatext features
✅ Audio playback and sample manipulation
✅ All preset functionality
✅ Recording and real-time processing
✅ Manual and automatic triggering

What requires optional libraries (desktop only): ⚠️ 3D scope visualization (requires simplex)
⚠️ Some advanced audio processing features (requires audiolab, ceammc, ggee)

📖 Read the full iPadOS/iOS guide for detailed instructions and troubleshooting.

The patch may look intimidating at first, but it is intentionally left “alive” (with formulas and functions visible) to encourage exploration.

BACKSPACE → Start

I soon realized that the most flexible way to manage thousands of segments was to use plain-text databases containing the necessary information. From there, I created the Dynatext system.

At the moment, I am working on formatting textual data from external APIs. In this way, Envion could become a powerful tool for generating thousands of random articulations not only generated internally, but also based on external data sources.

For example, by drawing on stock market data, weather information, or NASA’s extensive library of APIs — which are incredibly rich and fascinating. Even Co-Star, the app that calculates astrology and planetary positions, could provide inspiration for procedural envelope generation.

To grasp, in simple terms, what a system that generates thousands of envelopes can achieve, consider this practical example:

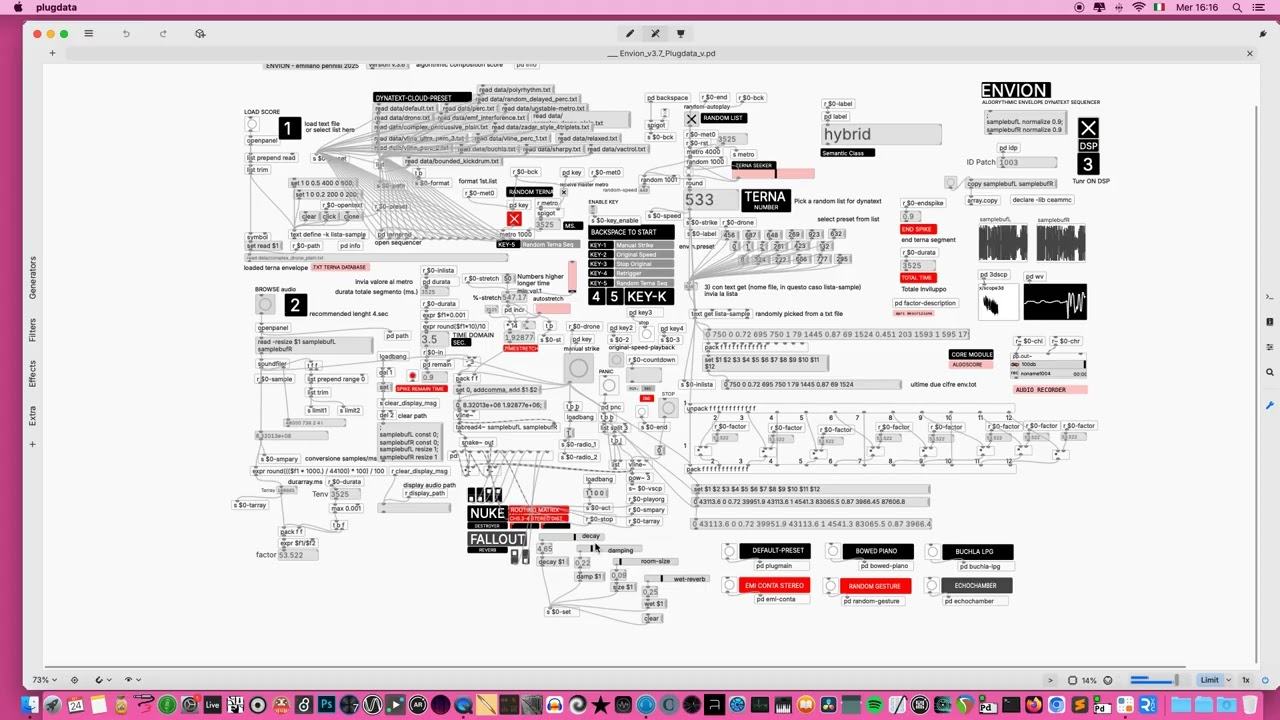

In the video below, we start from a very short single sample (a few milliseconds — in this case, a percussive hit). Through the generation of gestural trajectories, that tiny fragment is multiplied into an infinite variety of sonic events.

This happens because at each trigger the sound receives not only an envelope — which can be quite complex, with multiple stages — but also a stretch factor that remodels the source material.

In this sense, the term algorithmic drum machine is appropriate. That said, time can be further deformed, both through manual stretching and through procedural processes.

A single simple sample creates an almost infinite succession of events.

Video showing how a minimal percussive sample can give rise to a vast multiplicity of triggered events via gestural mapping and envelope/stretch transformations.

In the example patch, the message box contains a long list of numbers.
[list split 3] breaks each sequence into three values:

• Amplitude (target value, e.g., 1 or 0.2)
• Duration (in ms)
• Offset (start time in ms)

These are sent to vline~, which builds the temporal trajectory.

In practice, vline~ reads the sequence as a multi-stage envelope,
where each segment begins from the final value of the previous one.
In the provided patch, the envelope output multiplies the oscillator,
shaping the sound exactly according to the list.

Inside the Envion directory you’ll find a patch called terna-sample.pd.
Open it and try changing the content of the list:

• pick a file from /data
• copy and paste one of the envelope strings into the message box
• listen to the result

To be more exhaustive, further down I also explain in greater detail
the concept of Triplets and how they are then handled by the algorithm.

This small exercise will help you better understand how the triple-based system works
and how each gesture is constructed from amplitude, duration, and offset values.

A complete interactive guide (HTML + SVG) is available here:
Envion v3.6.1 — Full Documentation

License

Envion is released under the MIT License with Attribution.
You are free to use, modify, and redistribute this project, including for commercial purposes, as long as you clearly attribute the original project name Envion and the author Emiliano Pennisi.
See the LICENSE file for details.

Envion - Plugdata version

Inside the repository there is also a version tailored for PlugData. It’s worth noting that this version is significantly more performant: unlike Pd-vanilla, where the audio and GUI share the same thread, PlugData (built on JUCE) separates the audio engine from the GUI. This reduces overhead, prevents dropouts when interacting with the patch, and makes real-time processing smoother. The JUCE-based architecture also improves GUI responsiveness, event handling, and CPU scheduling, resulting in noticeably faster and more stable performance, especially on older machines.

Envion is an envelope-first engine for Pure Data (Pd): it drives the read index of stereo buffers through textual sequences of triplets (value, time, delay) sent to vline~.
Each line of a text file represents a complete envelope; switching line means switching gesture.

The seminal text Gesture–Music by Claude Cadoz and Marcelo M. Wanderley
partly inspired the envelope-first design of Envion.
Their view of instrumental gestures as an interplay of action/energy, perception, and meaning
aligns with Envion’s approach: envelopes, slicing, and mappings behave as digital gestures
written onto audio rather than merely playing files.

• Ergotic (action/energy): envelopes and triggers impart force to the material.
• Epistemic (perception): trajectories shape how motion and form are perceived.
• Semiotic (meaning): mappings and presets articulate musical intent.

In short: Envion writes trajectories on sound.
This envelope-driven, gesture-centric view helps explain why a single fragment
can yield thousands of distinct, evolving articulations.

Reference — Cadoz, C. & Wanderley, M. M.,
Gesture–Music.

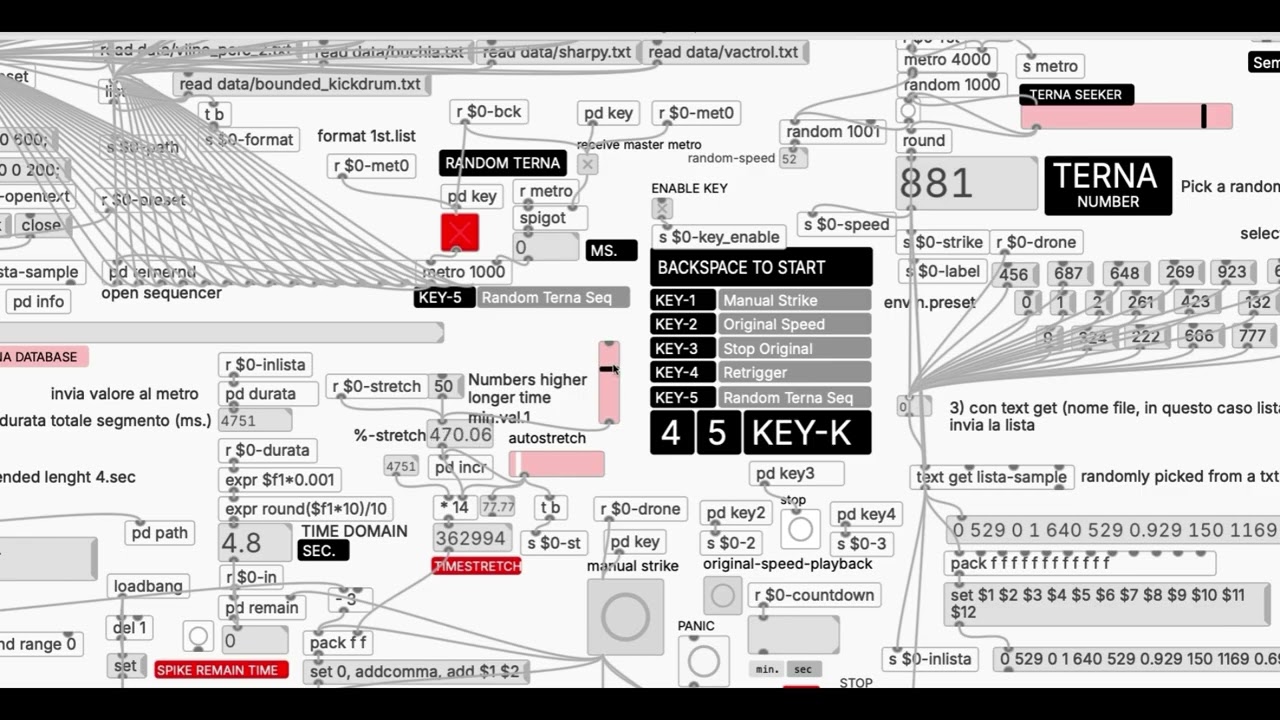

▶ Click the image above to watch the video on YouTube

The system is designed for musique concrète/acousmatic music, sound design, and non-metric writing.

To grasp, in simple terms, what a system that generates thousands of envelopes can achieve, consider this practical example:

In the video below, we start from a very short single sample (a few milliseconds — in this case, a percussive hit). Through the generation of gestural trajectories, that tiny fragment is multiplied into an infinite variety of sonic events. It follows that a single sample in Envion never sounds the same:
with each trigger, both time-stretch and temporal shape change,
turning the sample into thousands of sonic variations instead of a static file.

This happens because the sound receives not only an envelope — which can be quite complex, with multiple stages — but also a stretch factor that remodels the source material, forcing it to become something new every time.

In this sense, the term algorithmic drum machine is appropriate. That said, time can be further deformed, both through manual stretching and through procedural processes.

Key idea
Instead of “playing” files, Envion writes trajectories on them through numeric envelopes (dynatext).
This enables hyper-articulated hits, slow morphs, irregular internal delays, and pseudo-organic behaviors.

At its core, Envion adds an algorithmic layer that keeps the envelope and the sample tightly coupled.
This ensures that temporal gestures and sonic material remain bound together, preserving coherence while still allowing complex, generative transformations.

Dependencies for Pure Data Vanilla: Cyclone · ggee · ceammc · else · simplex (for 3D scope) | audiolab
Dependencies for PlugData: Cyclone (included) · else (included) · ggee (optional) · ceammc (optional) · simplex (optional) · audiolab (optional)

Install via Deken (Pure Data Desktop)

1. In Pure Data, go to Help → Find Externals… (opens Deken).
2. Search and install each library: cyclone, ggee, ceammc, else, simplex, audiolab.
3. If prompted for a location, install to your user externals folder (e.g., ~/Documents/Pd/externals).
4. Restart Pure Data so the new objects are available.

Note for PlugData users: cyclone and else are already built-in. The other libraries are optional and provide enhanced features.

Troubleshooting

• If you cannot find a library, check that you are connected to the internet and your Pd version is up-to-date.
• Installed externals may not load until Pd is restarted.
• On macOS, make sure you installed Pd with write access to the externals folder (sometimes you need to create ~/Documents/Pd/externals manually).
• PlugData iPadOS/iOS users: If you see dependency warnings about ggee, ceammc, simplex, or audiolab, you can safely ignore them. These are optional libraries that add extra features, but all core functionality works without them.

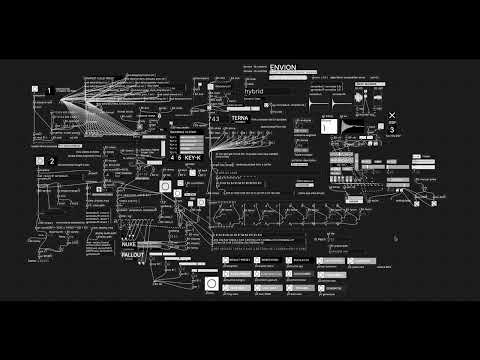

First step on Envion (youtube clip)

Deep HTML / SVG Guide here:

As a procedural environment, in most cases it is sufficient to load a sample, record the output for several minutes, and then select the most interesting portions of the generated audio.

1. Load a sample into the main buffer.
2. Enable Random Terna (checkbox below the Dynatext Cloud).
3. Enable Random List (central checkbox).
4. Record the output for several minutes.
5. Select the most significant sections of the recorded audio.

This approach highlights Envion’s nature: it is not about “playing” directly, but about generating emergent sonic material from which fragments can be extracted for composition.

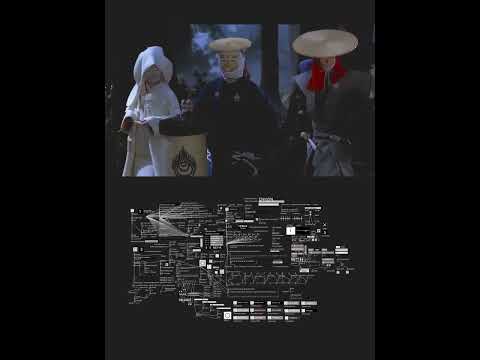

I loaded the Japanese Wood (Akira Wood) preset inside Envion to soundtrack a scene from Dreams (1990) by Akira Kurosawa — the Kitsune Wedding sequence, where the child wanders through the forest.

All the percussion comes from Envion, with a few strikes of hyōshigi (Japanese ritual wooden clappers) taken directly from the film.

𝐉𝐚𝐩𝐚𝐧𝐞𝐬𝐞 𝐖𝐨𝐨𝐝 (𝐀𝐤𝐢𝐫𝐚 𝐖𝐨𝐨𝐝) — 𝐄𝐧𝐯𝐢𝐨𝐧 𝐭𝐞𝐬𝐭

I loaded the Japanese Wood (Akira Wood) preset inside Envion to soundtrack a scene from Dreams (1990) by Akira Kurosawa — the Kitsune Wedding sequence, where the child wanders through the forest. All the percussion comes from Envion, with a few strikes of hyōshigi (Japanese ritual wooden clappers) taken directly from the film.

Hashtag
#puredata, #algorithmmusic, #algorithmiccomposition, #generativemusic, #musiqueconcrete, #envion, #electroacoustic, #sounddesign, #experimentalcomposition, #audiovisualart, #akirakurosawa, #dreams

To start experimenting, try loading the file:

/audio/env_0001.wav

This reel was created specifically for Envion using my modular synthesizers (Orthogonal Devices ER-301, Morphagene, and several Low Pass Gates).
It was then reamped — played back through speakers and re-recorded in the room — to capture the original ambient nuances of the space.

The result is a material that embodies a contrast:

• Surreal gestures generated by modular synthesis.
• Immersed within a real acoustic environment that imprints its own depth and imperfections.

This interplay between the synthetic and the real, between algorithmic articulation and spatial resonance, is at the core of Envion’s aesthetic exploration.

Stretch automation module (dual-matrix echo delay + LFO)

With the new release of Envion v4.0 several important updates have been introduced.
In addition to the dual-matrix echo delay, there is now a dedicated LFO for stretch automation, allowing you to modulate the stretch factor from 1% up to 40%.

Keep in mind: the higher the stretch factor, the more both the sound and its envelope will expand proportionally.
To avoid unwanted artifacts, a scaling limit at 40% has been implemented — this prevents entering ranges where you’re more likely to hear low-frequency clicks instead of musical articulations.

The LFO can be enabled or disabled via a dedicated spigot, and of course you’re free to tweak both the LFO speed and the stretch percentage to shape the behavior in real time.

When you load a preset, you can always return to the original stretch by simply re-triggering the preset.
If you’re experimenting with your own material and you find a moment that sounds inspiring, make sure to note the stretch value at that point.

For convenience, next to the LFO you’ll find a float reminder: whenever you load or change a preset, this number will display the current stretch value, so you can keep track at a glance.

Very important note: if you are using short percussive samples, start with stretch factors between 1% and 7–8%, and from there decide whether to lengthen or shorten. If you start from higher stretch values, you will only get a sound lasting a few milliseconds that is extremely elongated or even silence. This can of course be an intentional effect, but not always will the spectral characteristics of a short sound remain convincing under extreme time-stretching.

💡 Tip
When loading a very short sample (such as a percussive sound), adjust the stretch factor manually (use the vertical slider, not the horizontal auto-stretch).
Setting it to the minimum ensures that the envelope perfectly matches the duration of the sound, preventing unwanted stretching.

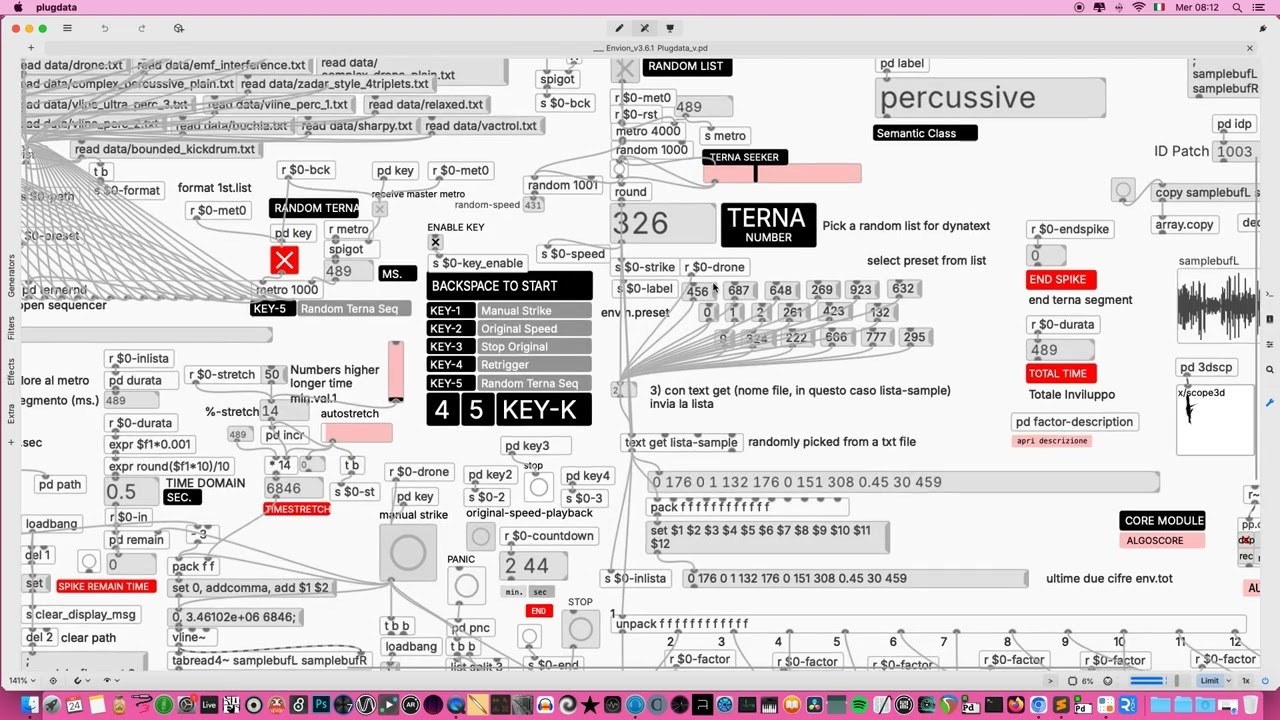

▶ Click the image above to watch the video on YouTube

💡 Freeze a sample in ENVION (pseudo-FFT feel)

In this video I show how to “freeze” a sample in ENVION.
I used an Amen Break as an example: by manually adjusting a few parameters, the final result strongly resembles an FFT transformation, even though the process itself is not technically spectral.

Here’s the interesting part: with the vertical stretch factor slider set to the minimum, the envelope is forced to perfectly match the duration of the sound, avoiding unwanted stretching;

Adding some reverb enhances the impression of a “frozen” texture.
The outcome is a kind of sonic illusion: there’s no actual FFT analysis happening, but the resulting aesthetic easily evokes a spectral transformation. It’s basically a “wannabe FFT”.

🔗 More about ENVION

NOTE: When loading material with high headroom (low volume), you can use the array normalization utility located in the top-left corner.
If instead you load mono audio material, there is also a Mono → Stereo function in the top-right corner.
This function creates a small loop and copies the data from the left array into the right array.

Ultra-stereo material is recommended for this kind of application.
When loading and mirroring mono material, activate Nuke on alternate channels of the matrix mixer to emphasize differences between left and right arrays, widening the stereo field.

By enabling both checkboxes, Envion activates a procedural randomization process that automatically draws from 19,000 pre-defined triplets and applies the X factor to each segment of the envelope.

• Random Terna: continuously loads text files from the /data folder (each file contains about 1,000 envelopes/triplets).
• Random List: randomly selects one of the 1,000 available lists.

This mechanism allows Envion to combine automatic loading and random selection, producing an ever-changing and potentially infinite stream of events.

Even though many operations seem repeatable (such as manually selecting a terna index from the list or triggering events by hand), the real nuances mainly emerge during the automatic phase.

At other times, depending on the source material, envelopes may generate non-zero-cross points or glitches. Yet this is part of the charm: when the program runs in random mode — unexpected sonic events and “happy accidents” are favored.

The Nuke module processes the left and right channels with slight differences in the filter and clipping stages.
These micro-variations introduce phase shifts and asymmetries between L and R, resulting in:

• Stereo widening: the left and right outputs are no longer exact copies, creating a broader spatial image.
• Perceptual instability: small discrepancies between L+R cause the sound to feel more alive and shifting in space.
• Enhanced aggression: distortion artifacts differ across channels, producing a wider, noisier stereo field.

Distortion/overload utility snapshot

This design choice makes Nuke not only a distortion stage but also a stereo expander through destruction.
The contrast between similar but non-identical processing of L and R is what gives the module its strong sense of spatial depth.

Echo section (L/R sends, feedback, flutter & post-reverb).

• Stereo: L/R channels with slightly different times create a wider field.
• Feedback: controls the number of repeats, from subtle to regenerating.
• Flutter: small random variations of delay time, making it more “alive” and unstable.
• Post-Reverb: reverb applied only to the echo tails, adding depth.
• Sends: send amount to Echo-L / Echo-R from the mixer to decide how much signal enters.

1. Filtered burst: a short envelope (line~) multiplies noise~ inside a bp~ (band-pass).
   Result: sharp, bright hits.
2. Grainy tone: noise~ through bp~ with variable frequency (MIDI scale → mtof), fast envelope.
   Result: more “tonal” accents.

Together, the two sounds fill the stereo space: the Echo’s micro-shifts create width and motion.

• Envion_v3.6.1.pd → main patch
• audio/ → test samples and audio files
• data/ → data terna and presets for slicing/algorithms
• html-guide/ → guides and documentation (also in HTML/CSS format)

One of the central elements of Envion is the use of terne (triplets of numerical values).
Each terna defines the behavior of a sound fragment through three main parameters:

1. Duration – relative or absolute time of the event (in ms or scaling factor).
2. Amplitude – the signal level, which can be constant or shaped by an envelope.
3. Offset / Position – the reading point or starting position of the fragment within the sample.

Dynatext are the true databases of Envion: they are not “small” files, but large archives containing up to 1000 lines each.
Every line corresponds to a complete trajectory, described through a numerical triplet (amplitude, time, offset), which is interpreted by the engine to drive envelopes.

These files, stored in the /data folder, form a vast repertoire of complex gestures ready to be activated, combined, and transformed.
By exploring the text files, you can easily understand how they are structured and, if you wish, create your own — although the existing library already covers a wide range of sonic behaviors.

• line~ only accepts a target and a time → simple, linear ramps.
• vline~ accepts an entire sequence of concatenated triplets (value, duration, delay), enabling complex articulations such as micro-curves, pauses, multiple attacks, and temporal bounces.

Instead of mere linear ramps, Envion works with fully-fledged dynamic phrases, richer and more expressive.

The system takes on an even more non-deterministic behavior when the two randomization checkboxes are enabled:

• Random List → randomly selects one of the 17 Dynatext files in /data.
• Random Terna → within the chosen file, randomly picks one of the 1000 lines.

This happens simultaneously: Envion randomly chooses both the file and the line inside it, yielding a very high degree of chance and variability. Each activation can produce a completely different gesture.

The key control is the Stretch parameter, which adapts the trajectories to the time domain of the audio material (a term familiar to Max/MSP users).

By adjusting Stretch, Dynatext trajectories are compressed or expanded in time:

• Low values → fast, percussive, almost microscopic gestures.
• High values → slow, broad, dramatic evolutions.

• Large archives (1000 lines × 17 files)
• Multi-level randomization (file + line)
• Fine time-domain control via Stretch

Together, these elements make Dynatext not just predefined envelopes, but a true generative machine of dynamic articulations, capable of endlessly surprising outcomes.

The patch duration_flag_800.pd implements a basic semantic check for incoming lists (vline-style). It ensures structural validity and assigns each list to a category before it is passed on.

1. Input (inlet) A list in vline~ format enters the patch (usually a triplet: duration – amplitude – offset).
2. Length check (list length)
   • The list must contain at least 3 elements.
   • If it has fewer than 3 → it is flagged as list invalid.
3. Splitting and unpacking
   • The list is split and the first three values are extracted (unpack f f f).
   • The first element is interpreted as duration.
4. Duration test (moses 500)
   • If duration < 500 ms, the list is classified as list percussive.
   • If duration ≥ 500 ms, it is classified as list hybrid.
5. Routing
   • Invalid lists are discarded.
   • Valid lists are semantically tagged as percussive or hybrid and then sent to the outlet.

This patch acts as a semantic filter:

• It first checks whether a list is structurally valid (minimum 3 items).
• Then it applies a musical classification based on duration: short events are percussive, longer ones are hybrid.

This guarantees that Envion only processes clean, meaningful lists and can route them according to their temporal behavior.

1. Load a list from Dynatext Cloud (or select a local .txt in data/).
2. Browse a sample (WAV) and assign it as the playback buffer.
3. Turn on DSP and explore.

• Use the manual triggers and sliders to test sequences.
• Adjust the stretch factor to compress/expand time.
• Try the ready-made presets (bottom area).

Timebase & $0-factor
The timebase module retrieves the buffer duration (samples → milliseconds), exposes it as $0-durata, and calculates $0-factor for the global stretch of envelopes.

TYPICAL CONVERSIONS

• $0-factor applies to times of each segment.
• Not mandatory when using terne as parameter modulations (e.g., FM resonance, filter index, temporal stretching).

Original-speed playback:
0, <array_size> <durata_ms> → scans the entire buffer in durata_ms at constant speed.

WORKFLOW

1. Load a sample → openpanel ~ soundfiler into sampletabL/R. If mono, use Mono→Stereo (array copy L→R).
2. Load an envelope library → text define/get. Each line = one terna. Select or randomize.
3. Play → via autoplay or manual keys: KEY1–4 (strike, original-speed, stop, retrigger).
4. Record → from block AUDIO RECORDER.

USEFUL PRESETS (IDEAS)

• default.txt – basic, neutral list, useful as a starting point.
• perc.txt – percussive envelopes with fast attacks and short decays.
• vline_perc_1.txt / vline_perc_2.txt / vline_ultra_perc_3.txt – percussive variants generated via vline~, from softer (1) to more extreme/fast (3).
• zadar_style_4triplets.txt – complex envelopes inspired by the Zadar generator, with four-way triplet structures.
• complex_drone_plain.txt – long, static envelopes designed for drones.
• complex_percussive_plain.txt – articulated, rhythmical envelopes with irregular variations.
• emf_interference.txt – patterns inspired by electromagnetic interference, with glitchy and fragmented shapes.
• drone.txt – very extended, continuous envelopes for static layered textures.
• unstable-metro.txt – “unstable metronome” sequences, irregular timing with micro-variations.
• buchla.txt – organic, West Coast-style envelopes, fluid and unpredictable curves.
• sharpy.txt – sharp envelopes with strong transients.
• relaxed.txt – smooth envelopes with slower times and softened curves.
• random_delayed_perc.txt – percussive hits with random delays, creating temporal irregularities.
• vactrol.txt – envelopes emulating a vactrol low pass gate, with natural attack/decay response.
• polyrhythm.txt – multi-layered, offset patterns generating polyrhythmic articulations.
• bounded_kickdrum.txt – envelopes constrained to kick-drum ranges, punchy with short sustain.
• terne_1000_fadeout.txt – 1000 terne with progressive fadeout, ideal for dissolving structures.

LIBRARY FORMATTING

• Line 1 = 4-segment envelope
• Line 2 = 2-segment envelope Avoid all-zero lines (silent)

AUTOPLAY & MANUAL PLAYER

• Autoplay: a metro drives text get; last strike duration can trigger next step (END listener).
• Manual:
  • KEY1 = strike
  • KEY2 = original-speed
  • KEY3 = stop
  • KEY4 = retrigger

Smart concatenation: internal delays in terne allow irregular patterns without reprogramming the metro.

PLAYBACK ENGINE

• tabread4~ sampletabL/R → interpolated 4-point reading, indexed by vline~
• *~ / pow~ → amp control (envelope) + optional shaping
• snake~ → stereo/multichannel routing
• safety → clip~ adds headroom to avoid clipping

Note: tabread4~ never stops. It runs until index=0 or out of buffer.
For immediate stop: send clear/stop to vline~, or drop amp to 0.

OUTPUT & RECORDER

• Main out → pd out~ (replace with dac~)
• Normalization (utility UI) before printing
• Recorder: internal block with rec/stop buttons

• Library hygiene: one envelope per line; always close with ;. Avoid zero times anywhere.
• Headroom: add clip~ after the amplitude multiplier if you use pow~ or boosting.
• Stagger stereo: send the same envelope to L/R but offset delays by a few ms for micro-spatial instability.
• Param-mod: use terne as control-rate (via vline + snapshot~ or directly vline~ → *~) for resonance/FM index. $0-factor is optional.
• Original-speed: build messages “0, size duration” for linear scans; useful as timbral reference.
• Debug: print the raw line, then the list of segments; check that the sum of time+delay does not exceed sync expectations.

Envion can also be approached in a very hands-on way, without diving into all the procedural automation.

💡 Tip
When loading a very short sample (such as a percussive sound), adjust the stretch factor manually (use the vertical slider, not the horizontal auto-stretch).
Setting it to the minimum ensures that the envelope perfectly matches the duration of the sound, preventing unwanted stretching.

• Load any list from the Dynatext Cloud.
• Assign a sample (short percussive ones work best).
• Use KEY-1 (Manual Strike) to trigger individual gestures.
  Each line of the list becomes a distinct hit: quick to explore, immediate to hear.

This simple workflow turns Envion into an algorithmic drum machine: by browsing different lists and striking manually, you can generate unique percussive articulations and irregular rhythms.

▶ Click the image above to watch the video: Algorithmic Drum Machine

• Combine short samples (kicks, snares, metallic hits) with percussive lists (perc.txt, random_delayed_perc.txt) for rhythmic patterns.
• Try drone or long lists on short samples: unexpected stutters and stretched hits emerge.
• Map envelopes to parameter modulation (filters, FM index) instead of playback for complex timbres.
• Alternate between manual strike and autoplay to balance control and emergence.
• For drum-like grooves, use Random List + Random Terna but limit the sample length to ≤ 500 ms.

This way, Envion can be both a tool for deep algorithmic exploration and a playful instrument for instant, raw experimentation.

Yes. One line = one envelope. With a single terna you get a one-step envelope. Multiple terne on the same line ⇒ multi-segment.

No. list split 3 is correct: it iterates groups of three values. Instead, extend the receiving side (e.g. unpack to 36 floats) or implement a dynamic parser with [until] that sends each terna as a group.

• Zero times (or very long delays) ⇒ apparent silence.
• target = 0 in all segments ⇒ zero amplitude.
• Formatting errors (missing ;, commas instead of dots, broken lines).
• $0-factor too small/large ⇒ “micro” or “glacial” envelopes.
• Out-of-buffer index (wrong messages to vline~ for array scanning).

Procedure: print the line → check triplets → verify sum of time+delay → try without $0-factor → try “original-speed”.

Send stop or clear to vline~ and attenuate with *~ 0.
tabread4~ follows the index: if the index doesn’t move and amp = 0, you hear nothing.

It’s 4-point interpolation (cubic). Improves quality when the index moves at non-integer speeds or oversampling.

• line: control-rate ramp.
• line~: audio-rate ramp, but only one segment per message.
• vline~: audio-rate with a sequence of segments, each with its own delay.

Yes. In that case map targets to the parameter’s range. $0-factor is only needed if you want to scale times; otherwise ignore it.

44.1/48 kHz is more than enough; avoid peaks at 0 dBFS. Leave 3–6 dB of headroom for shaping.

After preparing the text files, use the browse txt file option to load them. Then navigate with a numeric index or trigger a random selection button. Keep files thematic for coherent families. Use smaller files for quick testing.

Last update: 2025-10-09 11:08 CEST
