Erlang/OTP 28 Highlights

Erlang/OTP 28 is finally here. This blog post will introduce the new features that we are most excited about.

A list of all changes is found in Erlang/OTP 28 Readme. Or, as always, look at the release notes of the application you are interested in. For instance: Erlang/OTP 28 - Erts Release Notes - Version 16.0.

This year’s highlights mentioned in this blog post are:

• Priority Messages
• Improvements of Comprehensions
• Smarter Error Suggestions
• Improvements to the Shell
• New erlang:hibernate/0
• Warnings for Use of Old-style Catch
• PCRE2
• Optimizations to TLS 1.3
• Based Floating Point Literals
• Nominal Types
• New Emacs Erlang Mode

Sometimes, it is important for urgent messages to skip the queue and be read by the receiving process as soon as possible. Erlang/OTP 28 introduces priority messages, an opt-in mechanism that allows the receiving process to let certain messages get priority status.

By default, all messages are inserted to the end of the message queue of a process. This can become cumbersome when the queue is long. An urgent message may need to be read as soon as possible.

For example, the current message overload protection mechanism for logger polls its message queue length in order to know when it should start shedding messages. It would have benefitted from using the long_message_queue monitoring functionality introduced in Erlang/OTP 27, but the only way to get information like that is via a message, which would be inserted at the end of the very long queue.

Priority message solves this problem by letting selected messages be inserted before all ordinary messages, but still in the order they are received.

A receiver process can allow other processes to send priority message to itself in two simple steps. The first step is to create a process alias using alias/1:

PrioAlias = alias([priority])

This alias can then be distributed to other processes that should be able to send priority messages to the receiver process. A sender process can send a priority message by using erlang:send/3, passing the PrioAlias as the first argument, and the option priority in the option list as the third argument:

erlang:send(PrioAlias, Message, [priority])

In this way, messages sent to a priority alias with the priority flag will be inserted before ordinary messages in the message queue. Other processes can still send ordinary messages to the priority alias by not using the priority flag. If a message is sent to the priority alias without using the priority flag, it will be treated as an ordinary message.

It is also possible to send an exit signal as a priority signal, like this:

exit(PrioAlias, Message, [priority])

If the receiver process wants to stop receiving priority messages, it can do so by deactivating its priority alias:

true = unalias(PrioAlias)

After this, no priority message can be sent to the receiver process, because the priority alias is no longer active. The receiver process can activate and deactivate its priority alias again at any time.

Priority message reception can also be enabled for exit signals due to broken links and messages triggered due to monitors. Since these signals are not sent when a process calls a specific function for sending a signal, but when specific events occur in the system, a priority alias cannot be used for this. In order to enable such priority messages, you can pass the priority option to either erlang:monitor/3 or erlang:link/2.

Priority messages respect Erlang’s existing guarantee: Signals still arrive in the same order as they are sent, if they arrive at all. This change only affects where messages are inserted in the queue. Performance-wise, this feature preserves Erlang’s selective receive optimization. There is no performance penalty for ordinary messages or priority messages.

For more details, see the documentation of priority messages and EEP-76.

Erlang/OTP 28 introduces many useful updates in its comprehensions. All of them are new language features that have been suggested as EEPs. Between the release of Erlang/OTP 27 and 28, there were 4 accepted EEPs related to comprehensions. Features described by two of them are included in Erlang/OTP

1. The other two are postponed to a later release. The documentation for comprehensions contains an up-to-date overview of all relevant features.

Strict Generators #

Strict generator as described in EEP 70 aims to improve expressiveness and safety for comprehensions.

In OTP 27 and earlier, when the right-hand side expression does not match the left-hand side pattern in a comprehension generator, the term is ignored and the evaluation continues on. In the following example, the element error is silently skipped in the comprehension.

1> [X ||{ok, X} <- [{ok, 1}, error, {ok, 3}]]. [1,3]

This behavior can hide the presence of unexpected elements in the input data. In the example above, what if the list should not contain anything other than 2-tuples with the first element being ok? By using a strict generator, the comprehension crashes when the pattern-matching fails with the element error.

2> [X ||{ok, X} <:- [{ok, 1}, error, {ok, 3}]]. ** exception error: no match of right hand side value error

Strict generators can be used in list generators (<:-), binary generators (<:=), and map generators (<:-). In contrast, the previously existing generators are called relaxed generators.

Strict generators and relaxed generators can convey different intentions from the programmer. The following example is rewritten from a comprehension in the Erlang linter. It finds all nifs from an abstract form, and output them. Obviously, not all forms are nifs. We want to ignore all forms that are not nifs here. Using a relaxed generator here is correct.

Nifs = [Args || {attribute, _Anno, nifs, Args} <- Forms].

More examples about strict and relaxed generators can be found in List Comprehensions.

Sometimes, using either strict or relaxed generators is fine. When the left-hand side pattern is a fresh variable, pattern matching cannot fail. Using either leads to the same behavior. While the preference and use cases might be individual, it is recommended to use strict generators when either can be used. Using strict generators by default aligns with Erlang’s “Let it crash” philosophy.

Now you can pick a more fitting tool for the job, without losing the brevity of comprehensions. It is also a good time to review old code, and see if strict generators are more fitting in certain places. The compiler team in OTP has done that. Take a look if you are curious.

Zip Generators #

Zip generators as described in EEP 73 makes it easier to iterate over multiple lists, binaries, or maps in parallel.

Erlang’s list comprehension extract elements in a nested or cartesian way by default:

1> [{X, Y} || X <- [1, 2], Y <- [a, b]]. [{1,a},{1,b},{2,a},{2,b}]

Using zip generators &&, we can change the default behavior and “zip” generators together as if using lists:zip/2:

2> [{X, Y} || X <- [1, 2] && Y <- [a, b]]. [{1,a},{2,b}]

Zip generators can be used with lists, binaries, and maps, and can be mixed freely with all existing generators and filters. Unlike lists:zip/2 and lists:zip/3, you can zip any number of generators together using &&s. The compiler avoids creating intermediate tuples, yet preserving the same error behaviors as these helper functions.

The Erlang/OTP 28 compiler has levelled up its ability in spotting typos. Now it gives you suggestions on how to fix them, whenever possible.

For example, the following code exports an undefined function bar/1.

-export([bar/1]). baz(X) -> X.

The Erlang/OTP 27 compiler correctly points out the undefined function.

t.erl:3:2: function bar/1 undefined % 3| -export([bar/1]). % | ^

The Erlang/OTP 28 compiler goes one step further. It suggests a possible correction, according to all the defined functions in the module.

t.erl:3:2: function bar/1 undefined, did you mean baz/1? % 3| -export([bar/1]). % | ^

This applies to common error types, like undefined_nif, unbound_var, undefined_function, undefined_record, and so on.

It also works for wrong arity. If you call a function with the wrong number of arguments, the compiler will suggest available arities, like the following:

t.erl:6:12: function bar/2 undefined, did you mean bar/1,3,4?

This makes compilation errors easier to understand, and small mistakes faster to fix. Try it out and you’ll notice the change!

Erlang/OTP 28 brings several improvements to the shell interface, making it more flexible, interactive and powerful than before.

Lazy Reads from stdin #

Previously, Erlang’s stdin greedily read all input data, which could cause problems with special characters. This is changed by PR-8962. Now in Erlang/OTP 28, all reads from stdin are done upon request, like only when an io:get_line/2 or equivalent is called. This removes the need to use the -noinput flag, and resolves issues like Issue-8113.

Raw and Cooked Modes for noshell #

The noshell mode now supports two “submodes”:

• cooked is the default behavior, same as before.
• raw is the new option that can bypass the line editing support of the native terminal.

In raw mode, you can build more interactive applications. It offers the possibility to read keystrokes as they happen without the user typing Enter, while disabling the line editing support and the echoing to stdout. The following example is an escript that can read raw input (and immediately prints it back out) without requiring the user to press Enter:

#!/usr/bin/env escript %% t.es main(_Args) -> shell:start_interactive({noshell, raw}), io:format("Press any key, or press q to quit.\n"), loop(). loop() -> case io:get_chars("", 1024) of "q" -> io:format("Exit now.\n"); Chars -> io:format("~p", [Chars]), loop(); {error, Reason} -> io:format("Error reason: ~p~n", [Reason]), ok end.

With this, Erlang’s shell becomes a platform for building interactive terminal applications. The custom shell documentation shows how to create a custom shell. The terminal interface documentation shows how to implement a tic-tac-toe game.

Try it out. We look forward to see more interactive applications created using this feature.

Using fun Name/Arity to create funs in shell #

Thanks to PR-8987, you can now use fun Name/Arity to create funs in shell. The fun can be created from an auto-imported BIF, such as is_atom/1, as in the example below.

1> F = fun is_atom/1. fun erlang:is_atom/1 2> F(a). true 3> F(42). false

Or from a local function defined in shell, as in the following example.

1> I = fun id/1. #Fun<erl_eval.42.18682967> 2> I(42). ** exception error: undefined shell command id/1 3> id(I) -> I. ok 4> I(42). 42

Erlang/OTP 28 introduces a new erlang:hibernate/0 function. This built-in function puts the calling process into a wait state where its memory footprint is reduced as much as possible. When the process receives its next message, it will wake up. Unlike the existing erlang:hibernate/3, it does not discard the call stack.

This makes erlang:hibernate/0 useful for processes that expect long idle time, but want to have a simpler hibernation.

Memory Usage Experiment #

To demonstrate how efficient erlang:hibernate/0 is, we can make a benchmark that can spawn different number of processes (starting from 1, going up to 1 million), let them either waiting for a message using receive or using erlang:hibernate/0, and then compare memory usage.

Here’s the test code for the first scenario, which uses erlang:hibernate/0:

-module(benchmark_hibernate). -export([worker/0, spawn_all/1]). worker() -> erlang:hibernate(). spawn_all(0) -> timer:sleep(1000), io:format("Memory usage: ~p~n", [erlang:memory()]), timer:sleep(1000), io:format("Memory usage after 1s: ~p~n", [erlang:memory()]), ok; spawn_all(N) -> spawn(?MODULE, worker, []), spawn_all(N-1).

Here’s the test code for the second scenario. Processes stay idle but they do not hibernate:

-module(benchmark_receive). -export([worker2/0, spawn_all/1]). worker2() -> receive _ -> ok end. spawn_all(0) -> timer:sleep(1000), io:format("Memory usage: ~p~n", [erlang:memory()]), timer:sleep(1000), io:format("Memory usage after 1s: ~p~n", [erlang:memory()]), ok; spawn_all(N) -> spawn(?MODULE, worker, []), spawn_all(N-1).

Memory usage is measured by erlang:memory() after 1 million processes have been spawned. For the final result, we take the average of two measurements.

We spawn 1, 10 thousand, 100 thousand, and 1 million processes for both scenarios. Results are summarized in the following table:

  Number of Processes Memory Used (Mb)

Hibernated	1	44.8
Without hibernate/0	1	47.0
Hibernated	10,000	55.5
Without hibernate/0	10,000	73.4
Hibernated	100,000	130.3
Without hibernate/0	100,000	307.1
Hibernated	1,000,000	827.9
Without hibernate/0	1,000,000	2687.1

When there is only 1 process, the memory usage reduction is not obvious yet. When there are 1 million mostly idle processes, that’s more than 75% reduction in memory usage if you use erlang:hibernate/0!

Erlang/OTP 28 introduces a warning for using the old style catch Expr, instead of try ... catch ... end.

The more simplistic catch Expr is problematic in that it catches all exceptions and can therefore hide bugs. For example, if the intention is to catch exceptions raised by throw/1, the old-style catch will also catch runtime errors. Using its alternative try ... catch ... end can offer better clarity.

In a future release, the use of the old catch construct will by default result in compiler warnings. To facilitate removing usages of the old-style catch, the compiler now has an option warn_deprecated_catch. It can be enabled on the project level or the module level to prevent new uses of the old-style catch.

If you have added warn_deprecated_catch at the project-level, the warning can be suppressed in individual modules that have not yet been updated by adding the -compile(nowarn_deprecated_catch) to them.

Here are some common uses of the old style catch Expr. We will show how to replace them with try ... catch ... end and briefly explain why it is a better solution.

Example 1: Using catch Expr to handle a possible throw

throw/1 is often used to quickly return from a deep recursion. If tree_walker/1 is a function that traverses a tree and sometimes throws a value, the old-style catch could be used like this:

Result = catch maybe_throw().

It can be refactored to the following code:

Result = try tree_walker(Tree) of Value -> Value catch throw:Reason -> Reason end.

This is a bit longer, but it is also safer. For example, if the caller of tree_walker/1 passes in an invalid tree (such as not_a_tree), the try/catch will not catch the resulting crash, allowing the bug to be noticed and fixed early.

To have the same ensurance that crashes are not hidden when using the old-style catch, you would have to write, which is as much code as the new try/catch:

Result = case catch tree_walker(Tree) of {'EXIT',Error} -> error(Error); Value -> Value end.

Example 2: Using catch Expr to match a specific error in a test case

test_bad_argument(Term) -> {'EXIT',{badarg,_}} = catch list_to_atom(Term).

It can be refactored to the following code:

test_bad_argument(Term) -> try list_to_atom(Term) of _Value -> error(not_supposed_to_succeed) catch error:badarg -> ok end.

An easier way is to include the following header file:

-include_lib("stdlib/include/assert.hrl").

With that in place, you can simply write:

test_bad_argument(Term) -> ?assertError(badarg, list_to_atom(Term)).

That will also result in more information being given if the test case fails:

1> t:test_bad_argument("ok"). ** exception error: {assertException,[{module,t}, {line,6}, {expression,"list_to_atom ( Term )"}, {pattern,"{ error , badarg , [...] }"}, {unexpected_success,ok}]} in function t:test_bad_argument/1 (t.erl:6)

It is likely that the compiler will start generate warnings for the old-style catch in Erlang/OTP 29 or 30. If you are still using the old style catch Expr in your code, now is a good time to start refactoring.

Erlang/OTP 28 extends its floating point syntax to support floating point literals using any bases, similar to Ada and C99/C++17. This is based on EEP-75.

In Erlang, you can already write integers in different bases:

1> 2#100. 4 2> 3#100. 9

Now, you can do the same with floating point numbers:

1> 2#0.011. 0.375 2> 3#0.011. 0.14814814814814814 3> 16#0.011#e5. 4352.0

Such an exact representation of floating point numbers is especially useful in code generating tools. With only the base 10 representation, it is difficult to convert floats from and to other bases without precision loss. With based literals, you can even preserve bit level precision. For example, 2#0.10101#e8 represents the exact layout of a binary float.

Erlang/OTP 28 uplifts the re module to use PCRE2, instead of the PCRE library. This change is mostly backward compatible with PCRE with respect to regular expression syntax, but it also introduces some different behaviors.

The full documentation about breaking changes and incompatibilities can be found in PCRE2 Migration.

Why PCRE2 instead of PCRE? #

PCRE2 is more in line with modern standards, especially Perl regex, which is stricter about pattern syntax and catches invalid patterns early. This makes your regex code safer, at the cost of breaking some old regex patterns.

Notable Changes: #

• Stricter Syntax Validation: For example, \i, \B, \8 all result in errors.

% Erlang/OTP 27 1> re:run("AMM", ~S"\M"). {match,[{1,1}]} % Erlang/OTP 28 1> re:run("AMM", ~S"\M"). ** exception error: bad argument in function re:run/2 called as re:run("AMM",~S"\M") *** argument 2: could not parse regular expression unrecognized character follows \ on character 1

• Unicode Property Updates: Characters matched by properties using \p{...} may have changed, according to the updated Unicode character property data.

• re:split/3 with Branch Reset Groups ((?|...)): The following example may evaluate to [[],"abc",[],[]] in some interpretations of PCRE and Perl versions, differing from PCRE2’s result.

1> re:split("abcabc", ~S"(?|(abc)|(xyz))\1", [{return, list}]). [[],"abc",[]]

It is worth noting that the internal format produced by re:compile/2 has changed in Erlang/OTP 28. It cannot be reused across nodes or OTP versions.

This upgrade offers better long-term maintainability, but you may need to test your existing regex code before upgrading.

The performance of SSL with TLS 1.3 has been optimized. The optimization reduces the general overhead for application data transmission. To measure the improvement from Erlang/OTP 27.1 to Erlang/OTP 28, we ran a small message echo benchmark and measure the time for roundtrips.

Results are shown in the following table:

  Samples Average Std Dev Median P99 Iteration

Erlang/OTP 28	25	65186	5.87%	66828	68749	38352 ns
Erlang/OTP 27	25	51730	4.64%	51418	57296	48328 ns

In general, you can expect a 15% - 25% speed-up in Erlang/OTP 28 if you are using TLS 1.3. No changes are needed in your code. If your application uses TLS 1.3, this is a good reason to upgrade to Erlang/OTP 28.

Nominal type-checking as described in EEP 69 adds an alternative type system to Dialyzer. Nominal types can be declared using the syntax -nominal. The main use case of nominal types is to prevent accidental misuse of types with the same structure.

To start with, we can declare two nominal types meter/0 and foot/0 like the following:

-nominal meter() :: integer(). -nominal foot() :: integer().

Because meter/0 and foot/0 have different names and they are both nominal types, they are not compatible. Dialyzer performs nominal type-checking on input and output types of functions and specifications. For example, we can define functions int_to_meter/1 and foo/0 like the following:

-spec int_to_meter(integer()) -> meter(). int_to_meter(X) -> X. -spec foo() -> foot(). foo() -> int_to_meter(24).

The specification of int_to_meter/1 declares the function’s return type to be meter(), so the result of int_to_meter(24) has type meter(). However, the specification of foo/0 declares the function’s return type to be foot(). The two nominal types are not compatible. Therefore, Dialyzer raises the following warning for our example:

Invalid type specification for function foo/0. The success typing is foo() -> (meter() :: integer()) But the spec is foo() -> foot() The return types do not overlap

On the other hand, a nominal type is compatible with a non-opaque, non-nominal type with the same structure. We can define the function return_integer/0 like this:

-spec return_integer() -> integer(). return_integer() -> int_to_meter(24).

The specification says that return_integer/0 should return an integer() type. However, the result of int_to_meter(24) has type meter(), so return_integer/0 will also return a meter() type. integer() is not a nominal type. The structure of meter() is compatible with integer(). Dialyzer can analyze the function above without raising a warning.

There are exceptions to the nominal type-checking rules shown above. For more details, see Nominals in the reference manual.

Althought this is not included in the Erlang/OTP 28 release, members of the OTP team are developing a new Emacs Erlang mode using treesitter. If you are an Emacs user, you can get it from Github or Melpa and try it out.

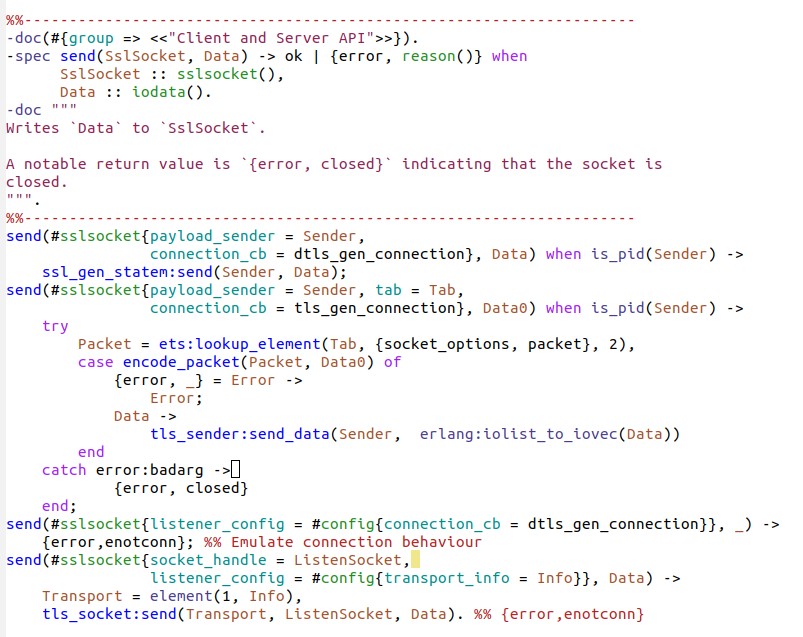

The new Erlang mode handles strings and documentation a lot better than the old one. See the screenshot below for an example:

If you are interested in contributing to this project, all help is appreciated.
