Fyrox Game Engine 1.0 Release Candidate

1 day ago 1

I'm happy to announce that Fyrox 1.0.0-rc.1 was released! Fyrox is a modern game engine written in Rust, it helps you to create 2D and 3D games with low effort using native editor; it is like Unity, but in Rust.

This is an intermediate release intended for beta testing before releasing the stable 1.0. The list of changes in this release is huge, it is mostly focused on bugfixes and quality-of-life improvements, but there's a new functionality as well.

If you find a bug, confusing or incomplete documentation, please file an issue or propose a solution by creating a pull request (opens new window).

Use the link (opens new window) to download page to learn how to install this release.

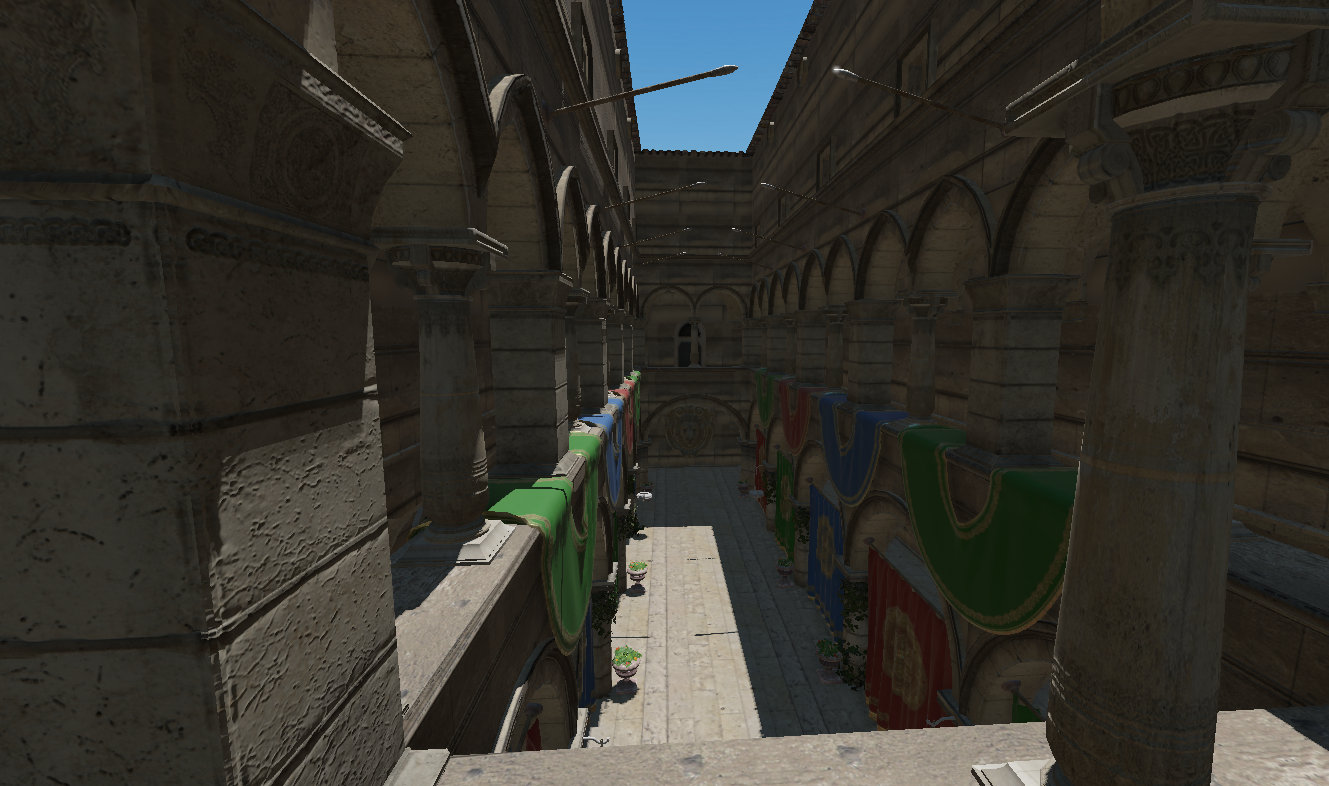

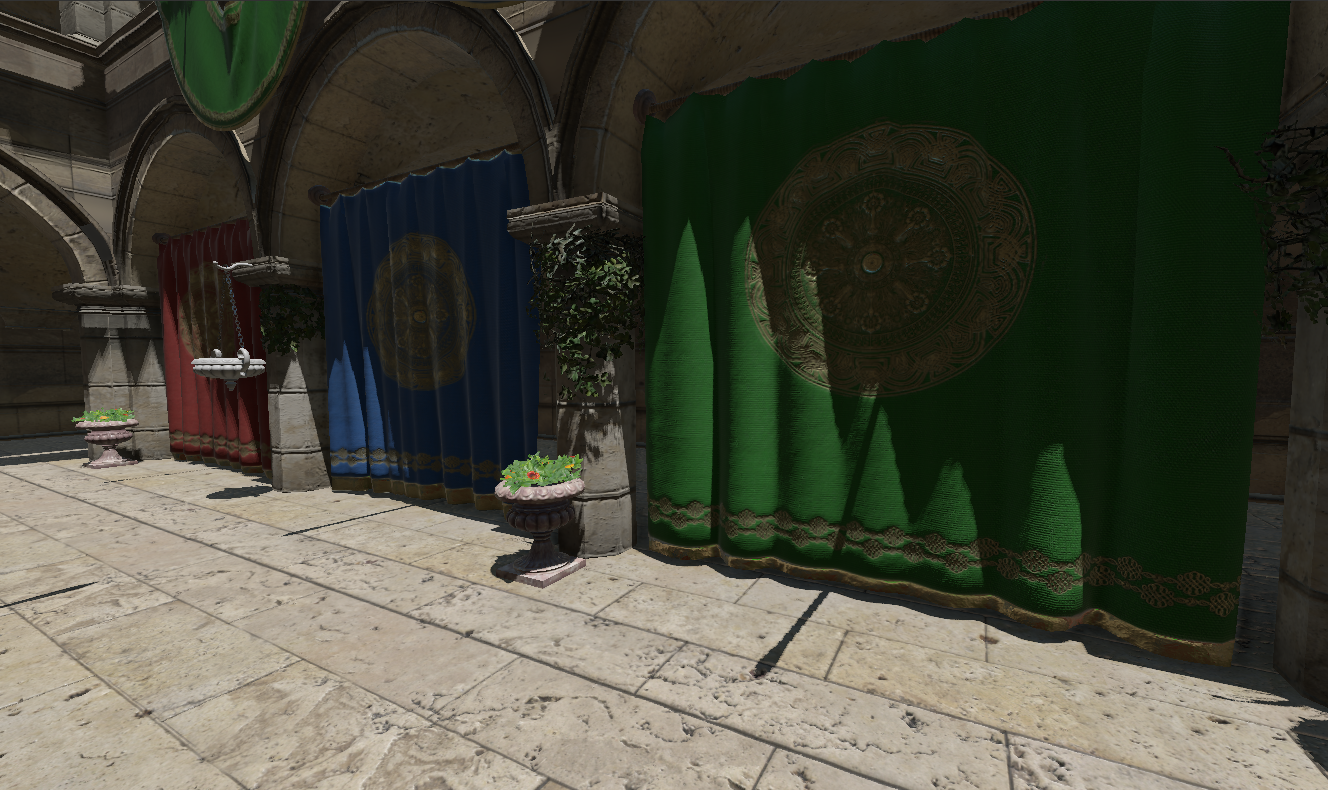

pbr ibl

Physically-based rendering pipeline is now fully complete and supports image-based lighting (IBL), environment mapping, and reflection probes.

The renderer still lacks any global illumination, but that's planned for the future releases (most likely for Fyrox 2.0).

# Render target for cameras

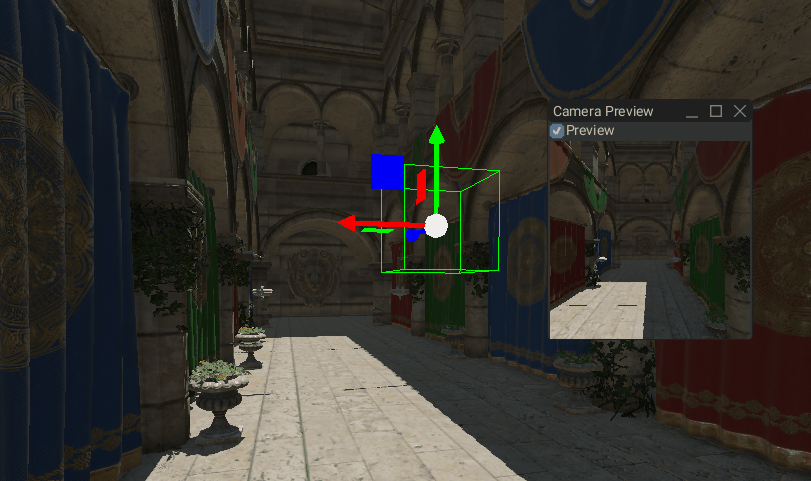

camera rt

It is now possible to specify render targets for cameras. It could be useful to create virtual in-game cameras that show some other areas are in the game. Such render target is used in the editor now for camera preview functionality (which is shown on the GIF above).

# Particle System

particle system fadeout

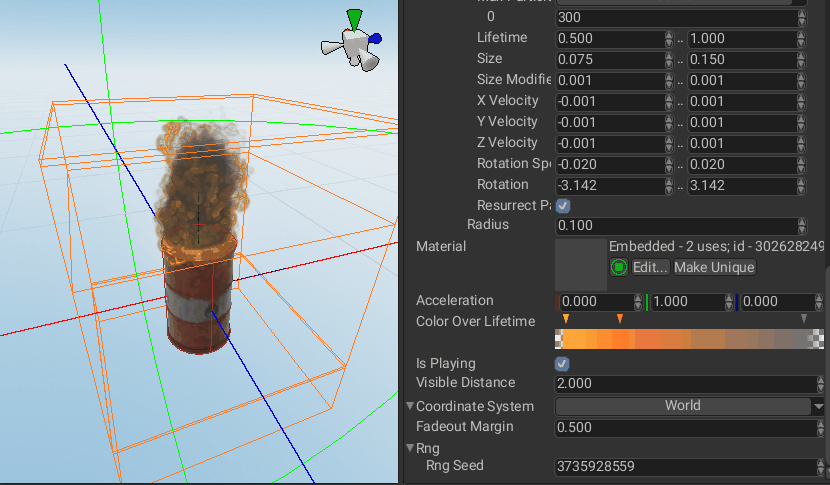

Particle systems now have a built-in ability to fadeout when far away from the camera. It is a very useful optimization that allows disabling distant particle system and free GPU resources.

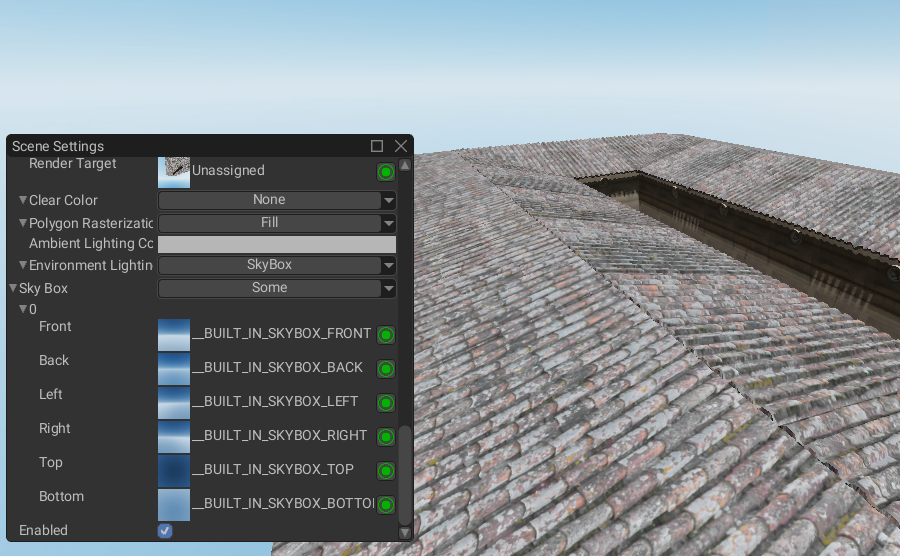

# Skybox

skybox

Skybox was moved from camera node to scene itself, and sky boxes are now used in IBL as a source of indirect lighting. By default, every scene uses skybox as a source of lighting (if there's no reflection probe). This may be undesirable in some cases (for example - in stylized graphics) and a flat color can be used instead. It could be specified either in scene settings in the editor, or in scene rendering settings from code.

# Improved Debugging

Fyrox now tries to assign meaningful names for GPU objects to simplify debugging via various graphics debuggers. This option is off by default, but it can be enabled pretty easily:

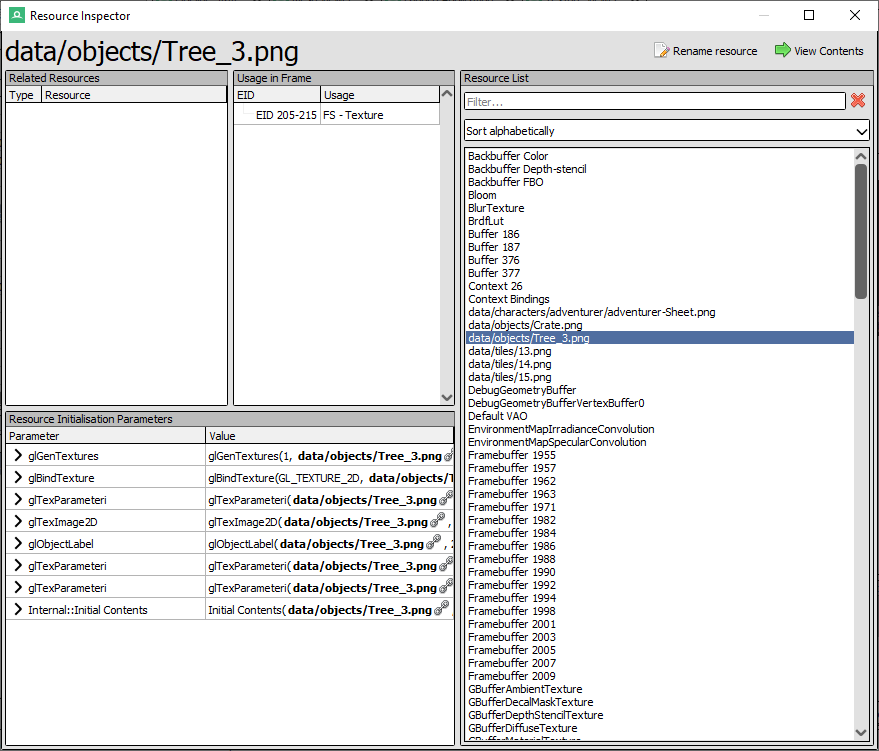

After that, the list of GPU resource can be observed in a graphics debugger, such as RenderDoc (opens new window) or similar (NVIDIA Nsight (opens new window) or AMD Radeon GPU Profiler (opens new window)):

gpu resources

Not every resource can have a meaningful name, for example, the engine packs uniform data into a small number of buffers and such buffers will be called UniformBuffer0/1/2/etc.

# OpenGL Isolation

Fyrox used OpenGL from the very beginning (2019), because it was the easiest way to get crossplatform graphics on a wide variety of platforms (remember, wgpu didn't even exist at that time). While it still works ok, it is quite messy and has lots of bugs. This release isolated OpenGL in a separate crate and exposed public API for a graphics server that will be used in the future releases to transition to modern GAPIs.

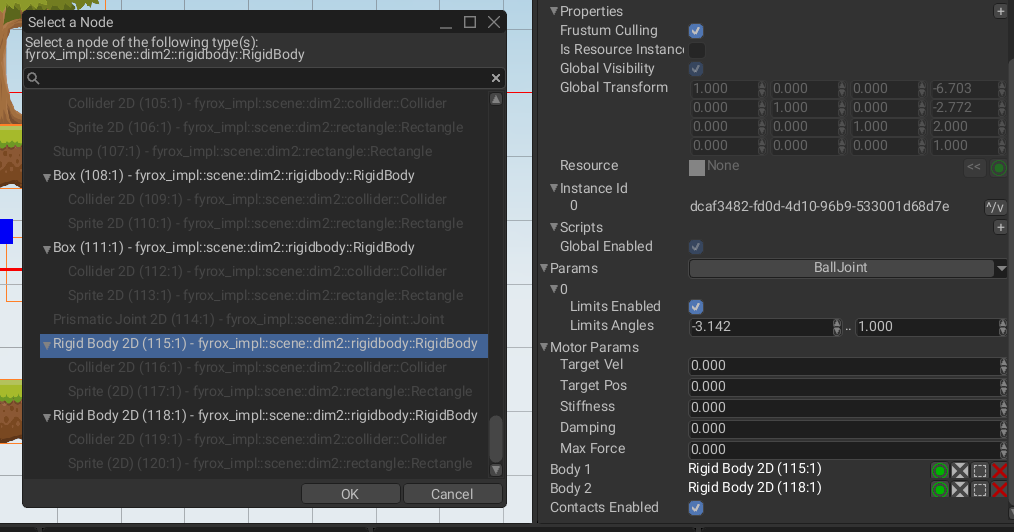

type safety

For a long time Fyrox supported only "untyped" handles (such as Handle<Node> or Handle<UiNode>), this approach was bug-prone because it effectively erased all the useful information about the actual node or widget type. This release adds strongly typed handles for all the scene and UI entities. It is now possible to store camera: Handle<Camera> in a script and access the camera by it using a simple graph[camera].projection_matrix(). There's no need to do a manual type casting. Typed handle improved the editor side as well - the handle selector will show only the objects of the right type.

The internals of the engine will slowly migrate to strongly-typed handles, there's a lot of places that can be improved with strongly-typed handles.

Game scene and its nodes have quite a lot of improvements in this release.

# Flipping for Sprite/Rectangle Nodes

Flipping for Sprite/Rectangle Nodes

Sprite (3D) and Rectangle (2D) scene nodes now have an ability to flip in both vertical and horizontal directions. It was possible to flip these nodes before by setting its scale to negative values for desired axes, but this approach has undesired effects. When a node is flipped by its scaling, all its children nodes will be flipped as well. This may ruin some hierarchies where flipping shouldn't affect descendant nodes. For example if there's an NPC with a name strip above it, flipping it by negative scaling will result in flipped text, while Flip X/Y options will flip only the sprite/rectangle.

# Reflection Probe

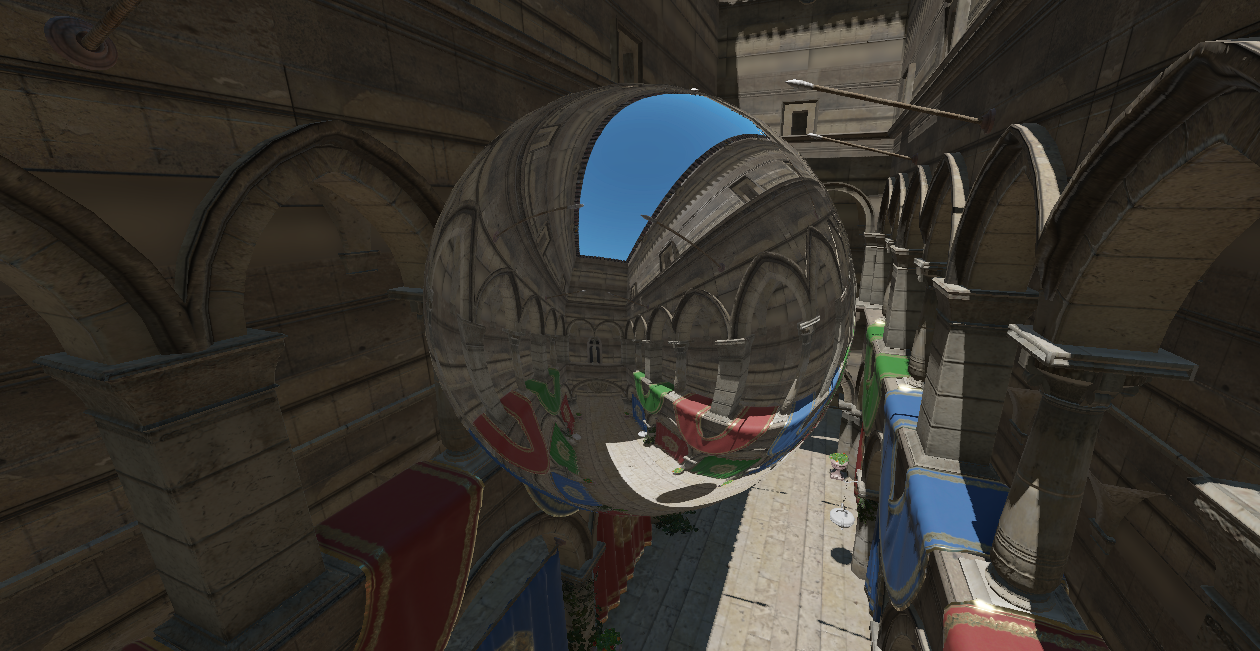

Reflection Probe

Reflection probe is a special scene node that "captures" surroundings into a cube texture which is then used as a source of ambient lighting (with IBL) and reflections. This scene node is used only in PBR pipeline. Reflection probes can be either static or dynamic. Static reflection probes are updated only once and can include all the objects in the scene. Dynamic reflection probes are updating every frame, this mode is quite heavy and not every object should be drawn in the probe. You can use render mask to prevent objects from being rendered in the reflection probe to improve the performance of dynamic reflection probes.

This release does not contain one very important part - there's no blending between the probes, it means that when the camera enters a new reflection probe, the sudden change of lighting and reflections may occur. Blending will be added in the stable release of Fyrox 1.0.

Resource system is now UUID-based and resource references are now stored as a simple UUID instead of paths as it was before. This allows renaming the source files of resources without a need to scan the entire project for path-based links and fix them.

Such transition comes with a price - every resource now must have a .metadata file beside it that stores its UUID. This file must not be deleted, it also must be moved together with the source file of a resource. This fact complicates the implementation of the resource manager quite significantly.

This refactoring also added a concept of a resource registry. In short - it is a map UUID -> Path that holds information about all the resources in the project. Resource registry tracks the file system changes and automatically updates itself (on PC only). It can be considered as a custom file system. It is very useful for platforms where no file system is available (WebAssembly).

The resource manager was improved significantly as well, it now offers more consistent API with some new features. One of the most significant features is an ability to move a folder with resources.

# Migration

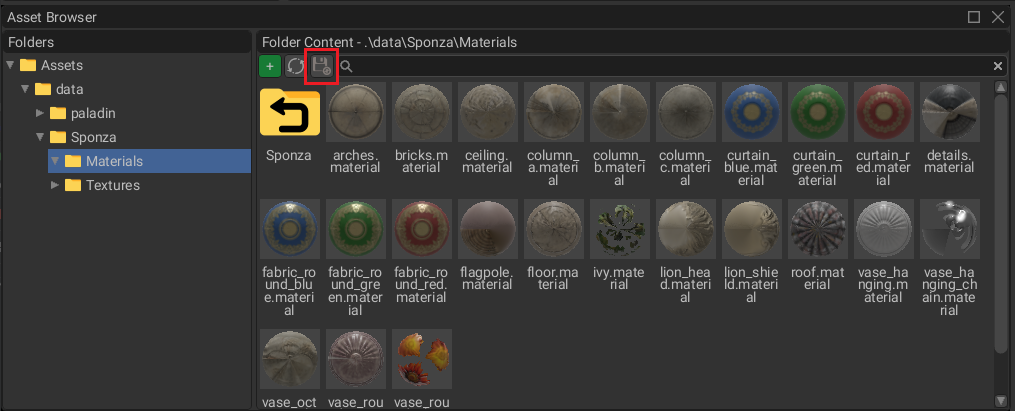

asset migrations

This intermediate release keeps backwards compatibility with assets made in the previous versions of the engine, but the upcoming release of stable 1.0 will drop this compatibility. To help with migration, the editor has a special tool that loads all the assets made in old formats and automatically converts them to the latest version. Use this tool to migrate all the existing assets of your project before using Fyrox 1.0.

Fyrox now uses text-based format for its native assets. This adds an ability to merge changes from collaborative work. Text format is then converted to binary form for production builds (can be disabled), which improves loading times. The syntax is very simple:

This is a custom format that was designed for better mergeability and type safety. An object starts with a name that followed by [attributes] which is then followed by {children objects}. Each attribute starts from a name and followed by a body <type:value>.

Until this release, the only way to check if a key or mouse button was pressed was only to listen to various input events. This worked fine, but for some simple cases looked like an overkill. Now there are much simpler way of getting the input state.

# Keyboard

The simplest way to check if a key was pressed/released or if it is still down is three methods of InputState:

is_key_down - returns true if the specified key is pressed, false - otherwise.
is_key_pressed - returns true if the specified key was pressed in the current frame, false - otherwise. This method will return false if the key is still pressed in the next frame. This is useful to check if a key was pressed and some action, but do not repeat the same action over and over until the key is released.
is_key_released - returns true if the specified key was released in the current frame, false - otherwise. This method will return false if the key is still released in the next frame. This is useful to check if a key was released and some action, but do not repeat the same action over and over until the key is pressed.

Typical usage of these methods is the following:

# Mouse

Mouse input fetching now also has a simplified version:

Spherical, revolute, and prismatic joints now support joint motors. Motors allow you to make the linked rigid-bodies move relative to one another, along the free degrees of freedom left by the joint, as if a motor was pushing them. The joint motor can have a target relative velocity along the free degrees of freedom as well as a target position. The stiffness of the motor controls the strength of the force that will be applied to make the bodies reach the target relative positions along the free DOFs. The damping of the motor controls the strength of the force that will be applied to make the bodies reach the target relative velocities along the free DOFs. It is also possible to configure the maximum impulse applied by the motor: this limits the maximum force/torque the motor is able to deliver.

The user interface system has gotten tons of useful improvements and fixes in this release.

# Performance

This release contains a lot of performance improvements for the user interface system. The overall performance increase is about 50%. The main source of performance increase is layout system improvements. Previously, the UI updated screen space information on every frame for every widget. Now it does this only for the widgets that actually changed. This includes screen position calculation, clipping bounds calculation, visibility flags calculation, etc.

This optimization increased overall editor performance by 50% as well. The editor has a huge number of widgets alive at the same time (15k+) and updating this huge pile of data was redundant, because 99.99% of widgets in the editor are static and moved only if a user decides to move them.

This change didn't affect the public API, and didn't break backward compatibility.

# Text Runs

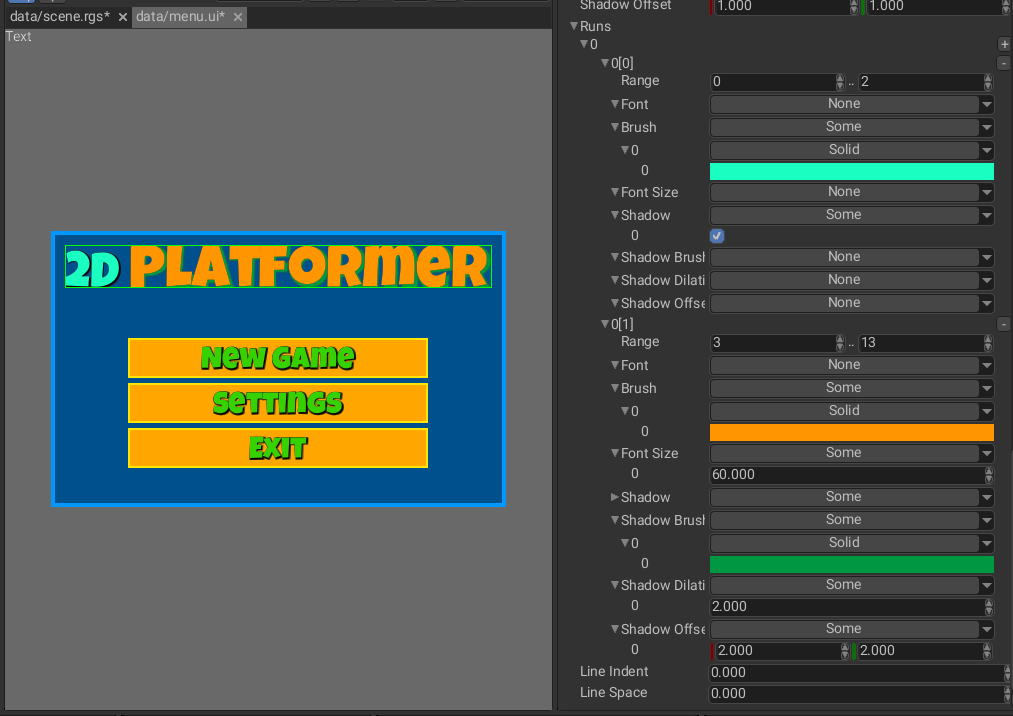

text runs

Text now supports so-called runs which allows you to change the appearance of individual portions of the text. Each run can modify font, its size, brush, and shadow properties. It can be used to stylize the text, for example, in some games, the description of items may use runs to highlight damage, armor, level, etc.

Each run is defined by a pair of indices of letters in the text and a bunch of properties. The ranges can overlap, the last one on the overlapping set has the top priority.

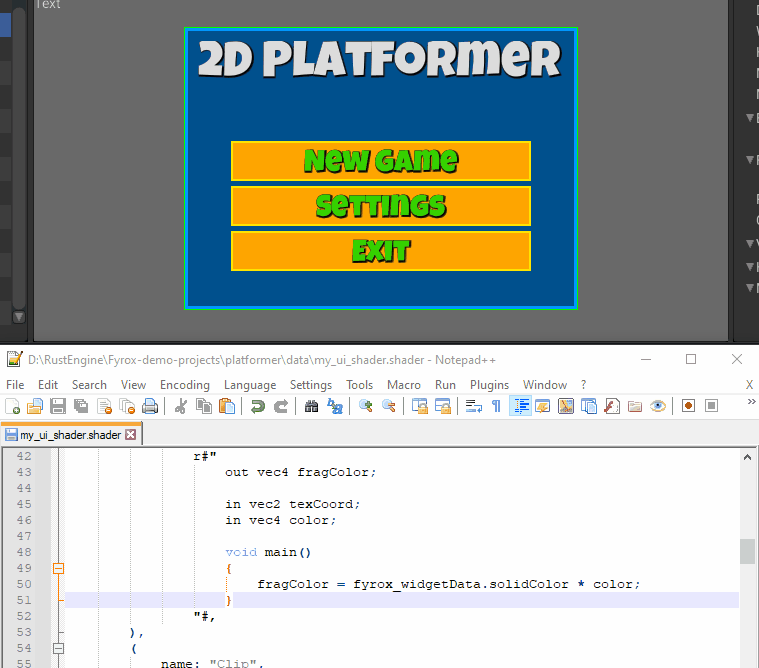

widget material

For a long time, UI widgets didn't have an ability to assign custom materials and shaders, in this release this limitation is finally dropped. UI shaders have a built-in property group (fyrox_widgetData) that contains all useful properties that can be used for rendering:

Name Type Description

worldViewProjection	mat4	World-to-clip-space transformation matrix.
solidColor	vec4	RGBA color.
gradientColors	vec4[16]	A set of gradient colors.
gradientStops	float[16]	A set of normalized (0.0-1.0) stops along the axis.
gradientOrigin	vec2	Origin position of the gradient (local coordinates).
gradientEnd	vec2	End position of the gradient (local coordinates).
gradientPointCount	int	Total number of gradient points.
resolution	vec2	Frame buffer size to which the widget is drawn to.
boundsMin	vec2	Top-left point of the screen space bounding rectangle.
boundsMax	vec2	Right-bottom point of the screen space bounding rectangle.
isFont	bool	true if the widget is a text, false - otherwise.
opacity	float	Opacity (0.0-1.0 range).
brushType	int	Brush type (0 solid, 1-linear gradient, 2-radial gradient

As usual, any additional data can be passed via custom property group and a custom material.

# Improved Docking

docking

Docking manager now supports any number of windows in a tile, this means that you can now put multiple windows in a tile and switch between them. It is also possible to rearrange them by dragging.

FyroxEd is an important part of the engine, it has gotten a lot of improvements and new features as well.

# Async Scene Loading

The editor now loads the scenes (both game and UI) asynchronously, not just blocks like it was before. This is much better in terms of user experience, because it leaves the editor responsive.

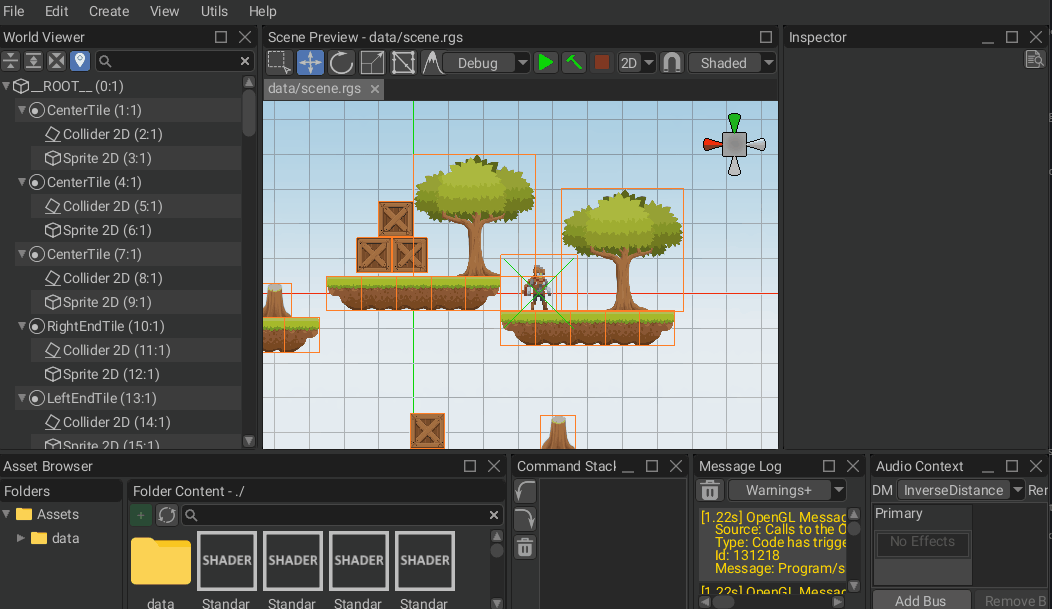

# Ability to Reset Editor Layout

reset layout

It is now possible to reset the editor layout to its defaults. It wasn't possible before, and in some situations it leads to corrupted layout that isn't usable at all. The only way to reset the editor's layout before was to delete the editor settings file. Now all you need is to press View -> Reset Layout.

# Copy/Paste for Inspector

copy/paste inspector

It is now possible to copy and paste the values of object properties in the inspector. This feature was missing for a long time and added a lot of headache when there was a need to copy complex values from one object to another. In this release, it is finally added. This functionality works on multiple selected objects as well, thus allowing bulk pasting of properties.

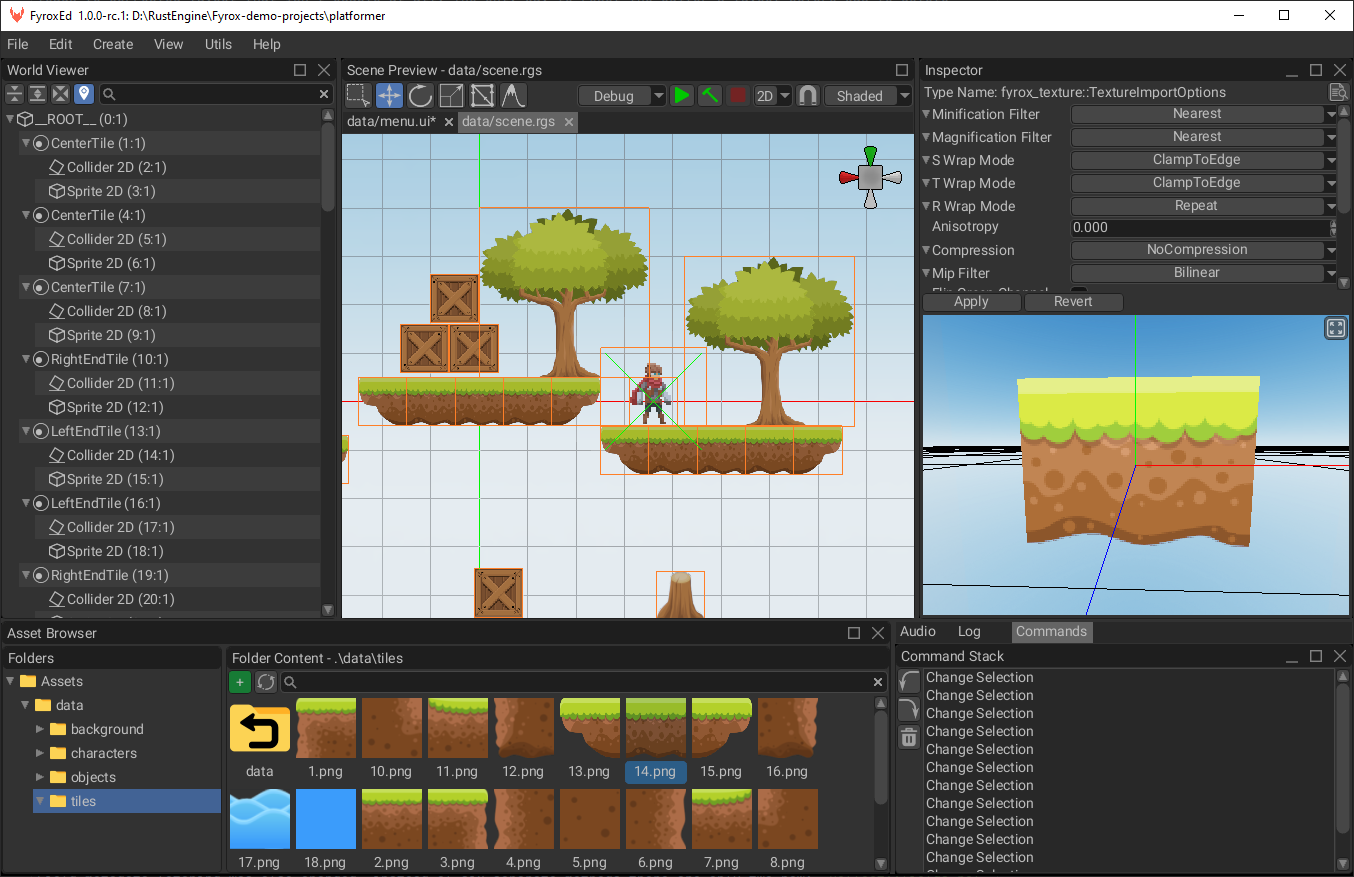

# Asset Browser

asset browser

The asset browser got lots of improvements in this release. Editing of the assets is now done via the same inspector as for game objects. The inspector shows either import options (for foreign resources, such as texture in the picture above) or the resource data itself (for native resources, including custom ones). This feature gives an ability to create and edit custom resources in the editor. Such resource can contain pretty much any data.

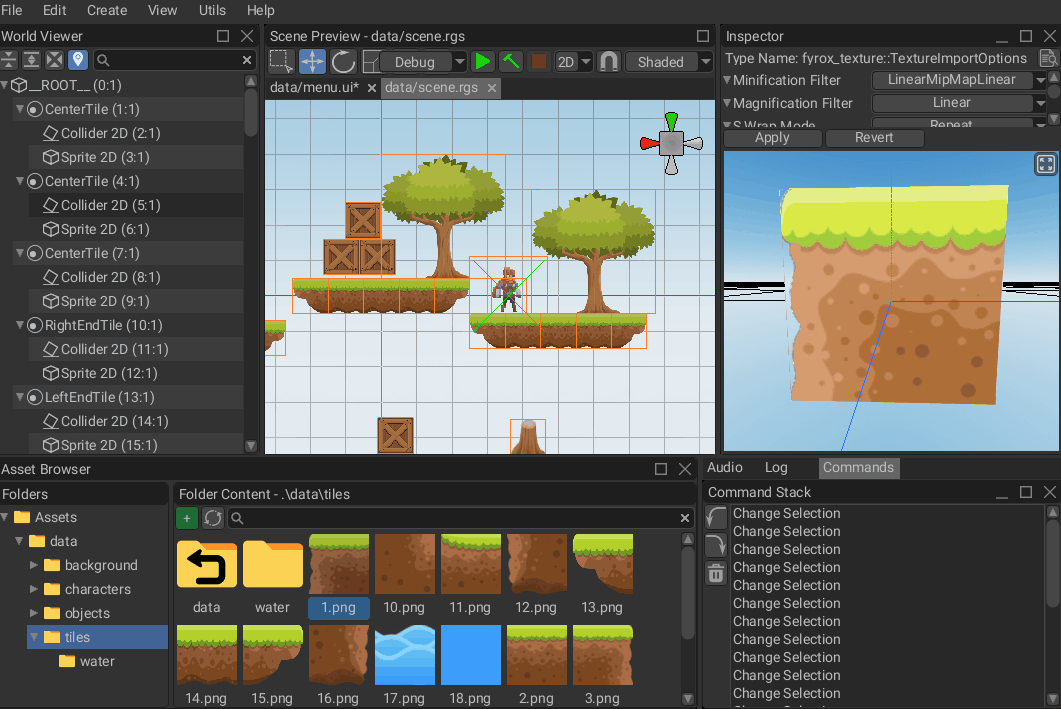

The asset browser now gives visual indication whether it is possible to move a resource or not while dragging:

dragging

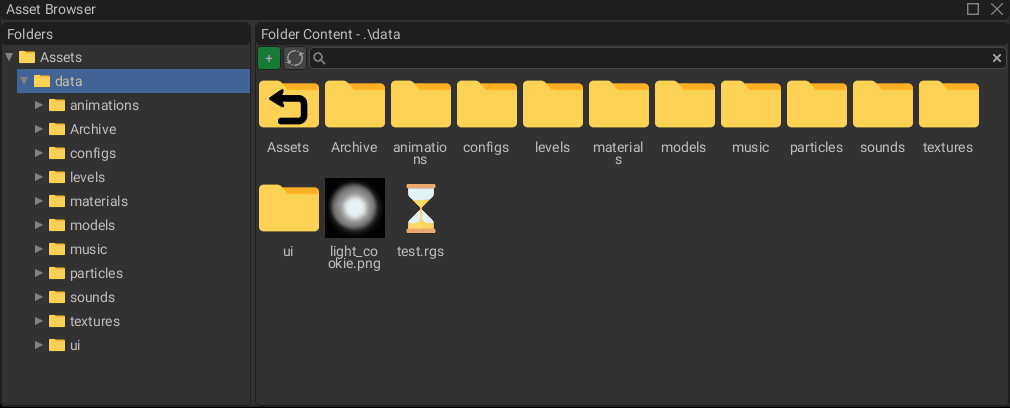

Asset preview generation is now multithreaded and works a lot faster than before, it is also a visual indication that shows that the preview is being generated:

preview gen

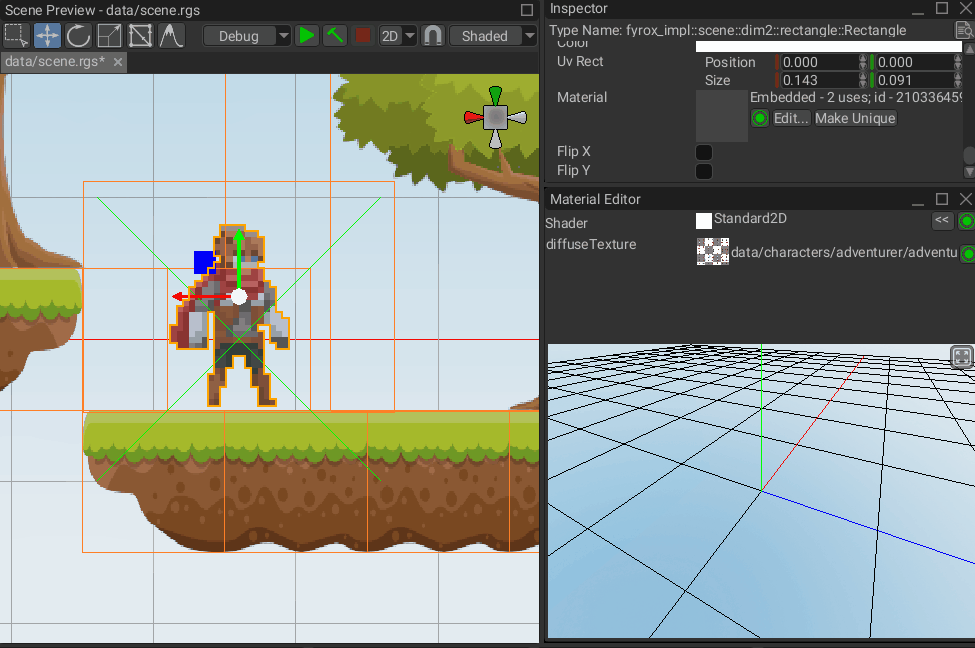

# Asset Selector

It is now possible to select assets via the new asset selector tool. Previously, an asset could be assigned only by dragging it from the asset browser and dropping at a respective field in the inspector. This was quite confusing, and now it is much more convenient:

asset selector

This selector has searching functionality and loads only the assets that are currently in the view, so there's no lagging during the search.

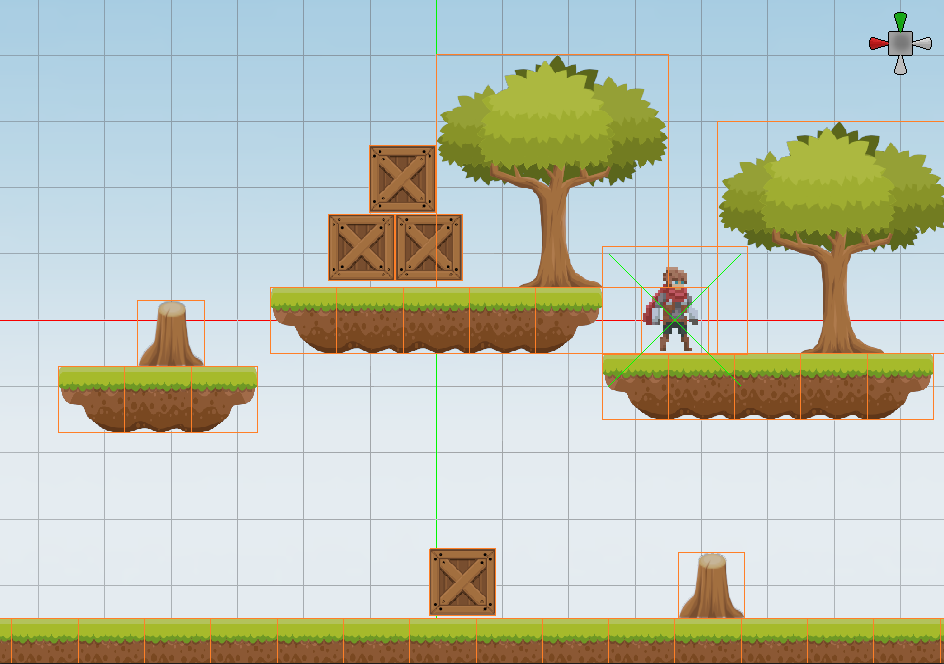

# 2D Grid

2d grid

The editor now shows grid in 2D mode. The grid's cell size can be configured in the editor settings.

Reflection system was improved as well. The most significant feature is an ability to clone an object through &dyn Reflect. This ability is used in the editor to copy/paste values in the inspector. Since not all objects that implement Reflect trait are cloneable, it is possible to mark such a type via #[reflect(non_cloneable)] attribute.

Field metadata fetching was also changed, instead of six separate methods there are only two now: Reflect::fields_ref

Reflect::fields_mut. These methods return an array of references to fields and their metadata.

This release contains significant improvements in the API documentation and the book. The book now covers around 80% of the engine. This number will be 100% with the stable release.

The new chapters of the book:

Lots of chapters in the book were corrected and restructured for better read.

The next major goal for the project is to release Fyrox 1.0, which is planned for December 2025.

If you want to support the development of the project, click this link (opens new window). Also, you can help by fixing one of the "good first issues" (opens new window), adding a desired feature to the engine, or making a contribution to the book (opens new window)

The list is split into four sections for ease of reading and finding particular information.

# Fixed

Fixed performance issues when deleting an object in the editor
Use ambient occlusion from material info in ambient lighting shader
Fixed skybox editing in scene settings
Fix build window (handle stderr and stdout in different threads)
Fixed ssao rendering
Exit build mode after successful build
Prevent loss of piped data due to BufReader dropping
Fixed cube texture to use only one size parameter instead of width+height
Fixed layout of resource property editor
Fixed reflection probe rendering with fxaa enabled
Add details to FieldTypeDoesNotMatch error to improve warnings
Check if a property can be cloned/pasted in the inspector
Fixed box selection in the editor
Improved selection order in the editor
Context menu handling for various inspectors
Fixed smart placement for move interaction mode
Fixed grid blending issues
Fail-safe shader/material handling when rendering
Fixed incorrect sampler params
Prevent clamping for infinite available size in the UI
Fixed axes colors for grid shader
Adjust grid cell size to match grid snapping options
Support all three major plane orientations (oXZ,oXY,oYZ) in grid shader
Improved selection in the editor
Fixed incorrect viewport handling for camera render targets
Do not crash if render data couldn't be created, return an error instead
Filter out editor-specific scene nodes when using camera preview
Remove render data for destroyed cameras
Use separate render target for camera preview in the editor
Added missing tab labels for 'Settings' and 'Navmesh' panels
Added missing interaction modes shortcuts for terrain and navmesh
Fixed terrain holes incorrect command name
Making relative paths for loading and saving scenes
Remove redundant BrushMacro method remove_cell
Highlight allowed types better in the node selector
Use typed_ref/mut methods in graph indexing impl
Show/hide camera preview image
Fixed interaction mode order in the toolbar to follow indices: 1..6
Fixed distance sorting for meshes
Collect only supported resources + ignore resources from excluded dirs
Fixed render order to be back-to-front for correct blending
Improved gizmo and exposed scale in editor settings
Prevented the camera frustum in debug draw from being scaled
Improved camera focus distance to be less close to the object
Correcting make_relative_path and scene saving logic.
Allowing make_relative_path to accept non-existing files
Improving error reporting for missing InspectorEnvironment
Fixed scene gizmo lighting
Fixed crash when an invalid asset is drag-dropped onto a surface field
Fixed crash when an empty string is used in the asset browser search
Fixed crash when CSM near and far values are superimposed
Fixed documentation for VisitError::NotSupportedFormat
Made "Show in explorer" work on other OS's
More concise naming for Reflect methods
Handle UI scaling in Screen Widget
Fixed potential crash in the editor
Improved performance of dynamic drawing methods
Fixed resource registration
Fixed deadlock when loading a resource
Preserve global transform when reparenting scene nodes
Fixed misleading docs
Fixing minimization for windows.
Fixed distance sorting
Reset editor camera rotation when in 2d mode
Fixed matrix2 deserialization
Fixing cut-off text in tooltips
Protecting against resource deadlock
Hold mutex locks as short as possible to prevent deadlocks
Use blocking resource registry updating where possible
Correcting terrain hole mask bug
Fixed asset item context menu not showing on rmb click
Do not try to reload unsupported resources.
Moving plugin and script handling to before node handling to fix teleportation glitch
Print error message instead of silently writing an error to the resource
Use trait upcasting and remove as_any for ResourceData
Fixed usages of ResourceKind
Fixed asset preview generation
Fixed built-in resource handles deserialization
Ability to create metadata files
Proper headless mode
Hide asset preview if there's no actual preview data for it
Fixed gltf shader
Fixed incorrect syncing of modified flag in the property editor
Prevent annoying message spam when import options are missing for asset
Fixed ambient lighting in case of non-skybox lighting
Render overlay icons only in the scene preview
Hide "revert" button for inheritable properties when no parent object
Improved performance of visual transform calculation in ui
Improved ui performance
Fixed blending issues when batching multiple rectangles
Fixed fitting for asset preview
Fixed visual glitch for scaling, rotation, and movement gizmos
Fixed update loop state in the editor
Fixed deletion of gl vao/gpu programs/textures
Fixed incorrect caching/binding of gl framebuffer
Handle invalid aabb/division by zero when doing camera fitting
Fixed menu item content alignment + make_menu_splitter helper
Reset visual state of a selected option in the dropdown list on select
Fixed asset preview update when a resource changes
Significantly reduced annoying visual lag when generating asset previews
Correctly detach the content of control panels of various entities
Fixed text alignment in various places in the editor
Fixed asset preview
Do not stop deserialization on invalid resource refs
Fixed inability to add animation track for a node
Better lighting for asset preview
Fixed torus faces orientation
Fixed deferred preview generation for assets in asset selector
Fixed Option::None serialization
Fixed camera picking issues
Do not change resource uuid when moving it in the editor
Log window improvements + fixes
Fixed crash when trying to select text in the text box via double click
Fixed resource movement in the asset browser
Fixed incorrect position of dragndrop preview when dpi scaling is used
Update asset preview if the asset changes
Properly handle added/removed resources to/from the resource registry
Use correct material in MaterialFieldEditor
Fixed crash in case of invalid material resource used in ui renderer
Fixed request of built-in resources in the resource manager
Fixed incorrect color space in standard forward pass of standard shaders
Fixed black screen bug when saving a scene with active camera preview
Prevent deadlock when trying to get a debug name for gpu texture
Fixed incorrect ambient lighting calculation
Reduced memory usage when generating asset previews
Clamp anisotropy in [1.0; 16.0] range to prevent video driver errors
Fixed uuid_provider macro
Correcting InheritableVariable::visit and physics integration parameters dt
Fixed selection button being clipped on material property editor
Fixed gimbal lock in GLTF animations
Prevent crash on empty uniform blocks
Update the material editor when hot-reloading a shader
Fixed crash on material hot-reloading when a property was removed

# Added

Added image-based lighting (IBL)
Name for gpu buffers
Named gpu textures
Ability to specify mip level for frame buffer attachments
GraphicsServer::create_cube_render_target
Added runs to FormattedText
Texture::new_cube_render_target
Environment mapping
Reflection probe node
fyrox_widgetData built-in property group
Ability to specify custom shaders for widgets
Documentation and helper methods for colliders
Implementing Debug and Display for BitMask.
Brdf lut generator
Ability to copy/paste values in the editor setting's inspector
UserInterface::has_descendant_or_equal
Inspector::handle_context_menu_simple
GpuShader entity
Reflect::try_clone_box
Ability to copy/paste values in inspector
Added is_significant method for editor commands
Show grid in 2d mode in the editor
Docking manager for asset browser
Echo popup messages
Copy Value + Paste Value options in context menu of Inspector
Collect property paths in the inspector widget
UserInterface::send_messages to send multiple messages at once
Implemented BorrowAs trait for widget handles
Enhanced tile set editing, copying pages
Debug impl for NodeHandleMap
Movable scene tabs
GraphicsServer::generate_mipmap
RendererResources with preloaded resources
Ability to specify the face of the cube map in frame buffer attachment
Environment cube map prefilter shader
Blanket impl for ScriptMessagePayload replaced with derive macro
Print allowed type name in the node selector + do type checking
Ability to set derived handle types in the handle editor
Dynamically typed script messages
Added a setting to modify editor camera's mouse sensitivity
Reflect::fields_info_mut + optimizations
More methods for handles accessed via reflection
Improvements to autotiling
Multithreaded wave function collapse
Adding empty tiles to tile map brush
Render target for cameras
Thread sleep in headless executor
ResourceLoader::convert impl for native scenes
Added ResourceIo::copy_file method
Added visitor version number
Added option to use %MANIFEST_DIR% to open IDE in project manager
Add render mask to Base node
Docs improvements for serialization
Universal Visitor::load_from_memory with format autodetection
Tests for move_resource
Integration tests for fyrox-resource
Adding support for kinematic physics
RG16F texture format
Allow user to change editor icon and customize window title
Tooltip for material resources in the material editor
Ability to fetch memory usage by the graphics server
Ability to disable asset conversion when exporting a project
Convert ui scenes to binary format when exporting a project
Print warning messages in the log when setting terrain height map
Resource registry ResourceManager::register + ResourceManager::uuid_to_path methods
Introducing multi-window docking tiles
Resource registry
ResourceIo::write_file + rename FileLoadError->FileError
ResourceLoadersContainer::is_supported_resource
Show selected path in the main window of the asset browser
Uuids for resources
Ascii reader and writer for visitor
Added #[inline] attributes for ui drawing methods
Configurable fadeout margin for particle systems
Fyrox-graphics documentation
Ability to disable picking restriction for popup widget
Ability to create gpu program from shaders
Ability to reset widget's visual state via respective message
Ability to reset editor layout
Cell property editor
Placeholder icon for resources without preview generator
Added placeholder icon for asset items whose preview is being generated
Loading scenes list window when loading scenes in the editor
Async loading for game and ui scenes in the editor
Ability to specify special title for root item in the filebrowser widget
Ability to paste properties in resource inspector
Ability to inspect and edit supported assets in inspector
Footer attachment point for inspector plugin
AssetSelection + inspect asset import options in standard Inspector
Helper methods for selection downcasting
Ability to move a folder with resource in the resource manager
Configurable depth for walk_directory method
Asset rename dialog improvements
Ability to rename assets in the asset browser
Add small margin for asset preview
Skybox api improvements
Added folder icon for file browser
Ability to select environment light source for scenes
Brush helper methods
Better navigation in the asset browser
Ability to enable or disable debug names for GPU objects
Added confirmation dialog for asset deletion
Use checkerboard background for asset preview tooltips
Improved texture property editor
Increased size of material preview
Preview for surface data editor
Preview for material property editor
Magnified asset preview for resource property editor
Show asset preview in resource field editor
Texture property editor improvements
AssetSelectorWindowBuilder::build_for_type_and_open
Ability to disable size sync of Image widget with its texture
Helper function make_pick_button
Generate preview for items in asset selector
Asset selector
Helper methods for ResourceState
Direct immutable access to underlying container for ResourceRegistry
ResourceManager::can_resource_be_moved
Highlight asset item when it accepts drop
Check for drop content in the file browser to show the correct cursor icon
Custom accepts_drop for AssetItem that checks if drop is possible
Allow to define custom drop response method on ui widgets
Improved visual style of AssetItem
Ability to move a folder when dropping it to some other folder
Ability to move a resource by dropping it to a folder asset item
Ability to move a resource by path without loading it
impl Display for FileError
ResourceRegistry::remove_metadata
ResourceIo::delete_file+delete_file_sync
UntypedResource::type_uuid_non_blocking
Ability to specify pre- and post-visit method calls for visitor codegen
Ability to try to get resource manager state lock for the given time period
Style api improvements
Ability to re-bind styled properties of widgets in the editor
Joint motors
Show graphics server memory usage in the editor's rendering statistics
Simplified interaction with keyboard and mouse.
Added flake.nix for generated projects
Simplified way of getting input state
Ability to flip sprite/rectangle nodes
Show id of materials/surfaces in the editor
Added TypeUuidProvider impl for VectorN types
Property editors for Run + RunSet
Property editor for char + editors for mask char in formatted text
Named constants for mouse buttons + helper methods for mouse input
Ability to set runs via respective message
Added srgba8/srgb8 texture formats
Added pure color texture
Added non-euler-angles-based rotation track

# Changed

Preventing deadlocks by replacing lock with safe_lock
Automatically destroy dead senders in resource event broadcasters
Renamed pool method typed_ref to try_get
Configurable render mode for ui
UI rendering api improvements
do not alter already loaded resource state when reloading it
Use scene skybox if there's no specific environment map
Do not prevent building without the opened scene
Remove dependency on status code 101 (which is cargo specific, while built-tool has tool-agnostic design)
Detached renderer from scene's Camera
Moved sky box to scene from camera
Enable seamless cube map filtering by default
Include breadcrumb into VisitError:RegionDoesNotExist
Move all shaders into a centralized storage
Moved opengl-specific code to fyrox-graphics-gl
Build tool now streams both stdout and stderr
Increased window size and inspector name column width in settings
Smart selection of corner arc subdivision when drawing borders
Recalculate clip bounds only for changed widgets
Allow the engine user to control the default editor settings
Use MaterialResource in widgets instead of UntypedResource
Refactored ui renderer to use materials
Documented keyboard focus
Separate brush for highlighting widgets with keyboard focus
Prevent selection of asset items while holding alt
Moved material/shaders to fyrox-material crate
Use separate struct for args for InspectorContext::from_object func
Include all nodes that produce render data in camera picking in the editor
Convert assets to their most efficient version when exporting a project
Reducing dependencies of fyrox-autotile
Use sampler+texture pair instead of old-fashioned combined texture
Migrate to latest winit/glutin/rapier
Disable texture lod bias for wasm builds
Moved set_panic_hook to engine initialization for wasm builds
Disable picking restriction for menus and context menus
Change layout of command stack panel
Save ui scenes in ascii mode by default
Normalize paths before passing them to ResourceManager::request
Close a menu by clicking on the menu item.
Improved docs of Resource::data_ref
Split FieldInfo into two parts FieldInfo + FieldMetadata
Moving control panels to inspector head
Merged DerivedEntityListProvider trait into Reflect trait
Refactored node handle property editor to accept typed handles
Register property editors for scene/ui node handles
Refactored NodeHandlePropertyEditorDefinition to accept generic type
Use typed handles in 2d joints
Less bright icons for scene nodes
Do not recreate render target for asset preview if preview is collapsed
Explicitly disabled unsupported render passes in standard widget shader
Reduced contrast of the text/images in the default dark theme
Do not save NEED_SYNC flag when serializing an inheriable variable
Correcting how ScriptPropertyEditorDefinition accesses environment
Refactor resource manager to use hash map for resources
Use stable ids when serializing rc/arc
Isolated visitor's reader and writer into separate entities
Reversing generate_free_handles to match spawn
Refactored resource system to use uuids instead of path where possible
Track vertex/fragment shader line location
Tidy up menus in the editor
Vector flattened structure for serialization
Close dropdown lists on selection
Open context menus on rmb-up event instead of rmb-down
Beautifying bitfield widget
Adding adjustable warning messages to autotile failures
Select asset item by rmb click
Expose instance id in the inspector
Use doc comment for property description
Expose more properties in the inspector
Unhide node's global transform in the inspector
Keep the editor active until it loads all the queued scenes
Use special root title for project's root folder in the asset browser
Override title for the root item in the asset browser
Only show folders that in the registry in the asset browser's dir viewer
Show only content from the resource registry in the asset browser
Use command-based approach when editing resources in the inspector
Use the respective command to change selection in the asset browser
Save the resource data on change in the inspector
Hide asset previewer for assets without a preview
Move asset preview to the inspector
Moved selection-specific code to selection itself
Show pretty type name in resource creator
Search in resource registry when searching in the asset browser
Better validation for file name when doing move
Do not allow to delete built-in resources
Improved FormattedText
Use flat gray color background for asset previews
Green color for add resource button
Disable duplicate and dependencies context menu items for folders
Use calculated local instead of screen position when setting new desired position after toggling of a view
Bring selected item into view in the list view when arrow navigating
Use texture property editor for texture bindings in material editor
Use helper methods in resource property editor
Increased margin on Stop button in build window
Improved validation when moving a resource
Check if a resource can be moved when moving an asset in asset browser
Moved tooltip from asset item to its text field
Make paths os-independent and canonical when moving a resource
Do not allow to create a resource outside of the data folder
Allow to use build tool with executable that doesn't expect "--" as passthrough marker
Build tools: delegate stderr to Log
Removed redundant empty impls of InteractionMode trait
Share fbx materials as much as possible
Store a style handle in the widget
Pass ui handle in Plugin::on_ui_message

# Removed

Removed resource duplicates
Removed invalid assertions
Removed redundant ResourceLoaderAsAny trait
Removed wasm-unsupported set_border_color of gpu texture
Removed get_image+read_pixels methods from gpu texture
Removed impls for field/field_mut
Removed redundant codegen for field/field_mut methods
Removed Relfect::fields/fields_mut methods
Removed owner_type_id field from FieldInfo
Removed redundant type_name field from FieldInfo
Removed Downcast trait, replaced with define_as_any_trait macro

Read Entire Article
