Nintendo Switch 2 Chip ID

This teardown is not a repair guide. To repair your Nintendo Switch 2, use our service manual.

1.

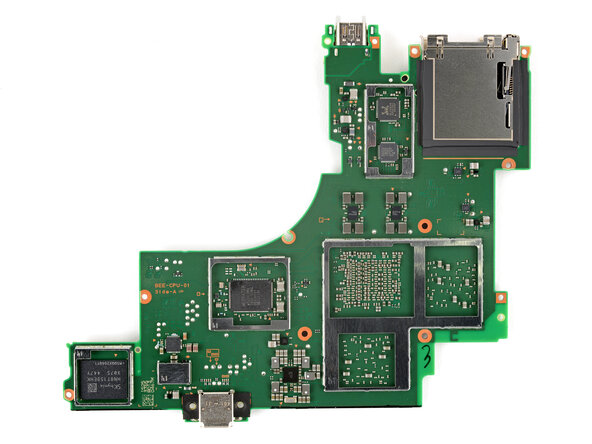

   • NVIDIA GMLX30-A1 applications processor w/ GPU

   • Micron MT62F768M64D4EK-026 WT:B 6 GB LPDDR5 SDRAM memory

   • Infineon CP10359AT USB type-C controller

   • Likely Nintendo B2423 Game Card reader controller

   • Genesys Logic GL852G quad-port USB 2.0 hub

   • Analog Devices MAX17050 battery fuel gauge

   • Diodes Incorporated PI2SSD3212NCE 14-bit 2:1 SSD switch

2.

   • Texas Instruments TPS2121 dual-input, single-output power multiplexer

   • Likely Analog Devices MAX18000 boost converter

   • Texas Instruments TPS62825 2 A step-down converter

   • Texas Instruments TPS25200 5 V eFuse

   • Texas Instruments TPS2553 USB power switch

   • Texas Instruments TS5A23166 dual SPST analog switch

3.

   • STMicroelectronics accelerometer & gyroscope

   • Texas Instruments TMP451 temperature sensor

4.





   • SK hynix HN8T15DEHKX075 256 GB NAND flash w/ UFS 3.1 memory controller

   • Analog Devices MAX77851SAWJ power management

   • Renesas DA9092 power management

   • Analog Devices MAX77986 single cell Li+ battery charger

   • Intelligo Technology IG2200 audio/voice processor

   • Realtek ALC5658 audio codec

   • Analog Devices MAX77801 buck-boost converter

7.

   • Rohm BD8316GWL step-up & inverted DC-DC converter

   • Nisshinbo Micro Devices R1214Z dual-channel step-up white LED driver

   • Likely Analog Devices MAX18000 boost converter

   • Texas Instruments TPS2553 USB power switch

8.

   • MediaTek MT3681AEN WiFi & Bluetooth controller

9.





   • Texas Instruments BQ25618 1.5 A buck battery charger

   • Likely Analog Devices MAX3864xA buck converter

10.

    • MediaTek MT3689BCA Bluetooth SoC

11.





    • Analog Devices MAX98388 class-D audio amplifier

    • Texas Instruments TPS2553 USB power switch

12.

13.

    • TDK-InvenSense ICM-42607-PN 6-axis accelerometer & gyroscope

    • AKM Semiconductor AK09919C 3-axis electronic compass
