Solved by Modern CSS: Section Layout

The problem

The following design might be simple to create in a tool like Figma, but getting them to work fluidly in the browser is a different story. It’s not complicated, but there are a few things that we need to consider.

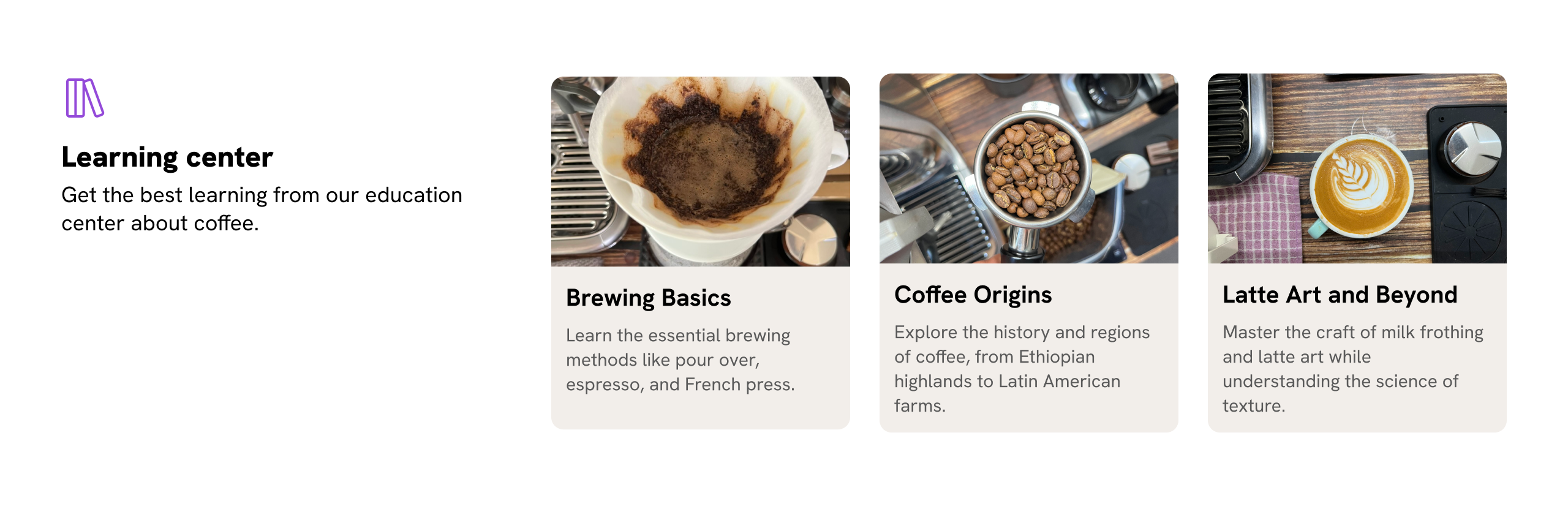

Take a look at the following design:

We have two main areas here to work on:

• The section’s header (icon, title, and description)
• The section’s content grid (cards)

How would you build this in CSS? Let’s find out.

Let’s start with the HTML markup:

<section class="section"> <header class="section-header"> </header> <div class="section-content"> <div class="card"></div> <div class="card"></div> <div class="card"></div> </div> </section>

And the CSS:

.section { display: grid; grid-template-columns: 1fr; gap: 1rem; @media (min-width: 600px) { grid-template-columns: 170px 1fr; } }

Here is a working demo. Try resizing the container, items will wrap onto a new line. It works fine, but it can be improved.

When we have more than 3 items on the largest viewport size, the 4th item will wrap into a new line.

Take a look:

There’s no direct way to detect orphaned items in CSS. In our case, we can change the layout by using CSS :has().

Let’s explore the solution.

The solution

I used a simple condition combined with quantity queries and got help from this awesome quantity queries tool by Temani Afif.

.section { display: grid; grid-template-columns: 1fr; gap: 1rem; @media (min-width: 600px) { grid-template-columns: 170px 1fr; } } .section:has(.card:nth-last-child(n + 4)) { grid-template-columns: 1fr; }

Try increasing the number of items to four and see what happens.

That’s better, right? We can take that further and make the section’s header more compact when we have more than 4 items.

.section { display: grid; grid-template-columns: 1fr; gap: 1rem; @media (min-width: 600px) { grid-template-columns: 170px 1fr; } } .section:has(.card:nth-last-child(n + 4)) { grid-template-columns: 1fr; .section-header { display: flex; gap: 1rem; border-bottom: 1px solid #ccc; padding-bottom: 0.5rem; } }

See the following demo and try to increase the number of cards to see what happens.

Now that the layout is working as we want, let’s enhance it further with fluid typography.

Fluid typography with clamp() and query units

We can enhance the example further using container query units and the clamp() function for fluid typography. Let’s find out how.

The highlighted section is the container.

We need to:

• Define the container
• Use the clamp() for the font size
• Use the cqw unit

Here is the CSS:

.section-header { container-name: section-header; container-type: inline-size; } .section-title { font-size: clamp(1rem, 1rem + 2cqw, 1.75rem); }

This is straightforward. It can’t be like that without clamp and query units. Try adding more card items and notice how the section title’s font size changes.

Responsive card layout

The card itself is another story. There’s a lot going on:

• Switch from horizontal to vertical layout based on the container width
• Fluid image size
• Conditional styling: if there is no image, we need to add a border
• Fluid font size for the title and description
• Activate a featured layout, if there is only one card within the section

All those details can be handled with container queries, style queries, and CSS :has() selector.

Switch from horizontal to vertical

This is one of the most common use-cases for container queries. We need to switch the card from vertical to horizontal based on the container width.

.card { @container (min-width: 400px) { flex-direction: row; } }

Resize the container below to see the effect.

Fluid image size

By using CSS clamp() and container query units, we can make the image size relative to the container width.

.card-thumb { flex: 0 0 clamp(70px, 10cqw + 70px, 150px); }

Resize the card in the following demo.

Fluid typography

The font-size of the title and description can increase or decrease based on the container width.

.card-title { font-size: clamp(1rem, 0.667rem + 2.67cqw, 1.5rem); } .card-desc { font-size: clamp(0.875rem, 0.708rem + 1.33cqw, 1.125rem); }

Tip: use this clamp calculator by 9elements.

Conditional styling when there isn’t an image

With CSS :has(), we can detect if there is an image or not. For example, I added a visual border to make it less boring when there is no image.

.card:not(:has(.card-thumb)) { border-inline-start: clamp(0.063rem, -0.063rem + 1cqw, 0.25rem) solid lightgrey; padding-inline-start: clamp(0.25rem, -0.083rem + 2.67cqw, 0.75rem); }

Notice that I also used clamp() with query units. Try it yourself.

Featured layout

This is a variation that turns the card into a featured layout. To work, we need to add --featured: true and query it with style queries.

@container style(--featured: true) { .card { display: grid; gap: 0; .card-content { background-color: var(--brand-1); padding: 1rem; } p { color: #fff; } } }

Resize time!

When there’s more space, we can stack the content on top of the card with a subtle backdrop blur effect.

(Yes, we can nest a size container query inside a style query.)

@container style(--featured: true) { .card { @container (min-width: 300px) { > * { grid-area: 1 / -1; } .card-content { background-color: hsla(from var(--brand-1) h s l / 0.65); padding: 1.25rem 1rem; backdrop-filter: blur(5px); } } } }

If the space is much larger, we can apply a featured style that works when the card spans the full width.

@container style(--featured: true) and (min-width: 500px) { .card { grid-template-columns: 1fr 1fr 1fr; > * { grid-area: initial; } .card-thumb { grid-column: 1 / 3; } .card-content { width: 120%; justify-self: end; background-color: hsla(from var(--brand-1) h s l / 1); backdrop-filter: initial; } } }

Take a look and resize the container.

Back into the section layout

Now that we have the card component ready, we can test it out within the section layout container.

I added real content to see what issues we might have. Yes, I’m sure we will end up with some.

You can either resize the demos, or take a look at the variations I added.

One card

Two cards

Five cards

Min width for flex items

In flexbox, the minimum width of flex items equals their content size, so a flex item will grow to match it.

In the following example, notice how the image is taking much more space than the content (Try on the Shuffle button to see it better).

(Fun fact: it looks like Safari is more forgiving for this than Chrome and Firefox.)

To fix that, we need to reset the min-width on the image.

.card-thumb { min-width: 0; }

Here is the result with the fix:

Featured item with long content

When the content is long, there is a space under the image. See the demo:

Here’s what we want to do:

• Align the image to the bottom
• Make it take the full height
• Set a maximum height to avoid a very long card in case someone put a word doc as a description (Defensive CSS)!

.card-thumb { height: 100%; max-height: 400px; align-self: end; }

Here is a demo with the above CSS applied. Try to change the word count and see what happens.

Change the layout based on the number of cards

In this version, we will check the number of items, and if they are 6 or more, we’ll feature the first item.

The layout you see below is done with CSS :has() and container queries (size and style). Play with it (increase or decrease the number of cards).

If the items are 6 or more, the first two cards will be featured.

@media (min-width: 400px) { .section:has(.card-wrapper:nth-last-child(n + 6)) { .card-wrapper:nth-child(1) { --featured: true; grid-column: 1/ -1; } .card-wrapper:nth-child(2) { --featured: true; grid-column: span 2; } } }

And if there are eight or more, the first card will take the full width.

@media (min-width: 400px) { .section:has(.card-wrapper:nth-last-child(n + 8)) { .card-wrapper:nth-child(1) { --featured: true; grid-column: 1 / -1; grid-row: span 1; } } }

Take a look and resize, as usual.

Learn more about CSS :has() in this article:

Not only can we change the grid layout, but we can also adjust the entire section layout based on the number of cards. For example, we can make the header part of the grid.

Given this HTML markup:

<section class="section"> <header></header> <div class="section-content"> <div class="card"></div> <div class="card"></div> </div> </section>

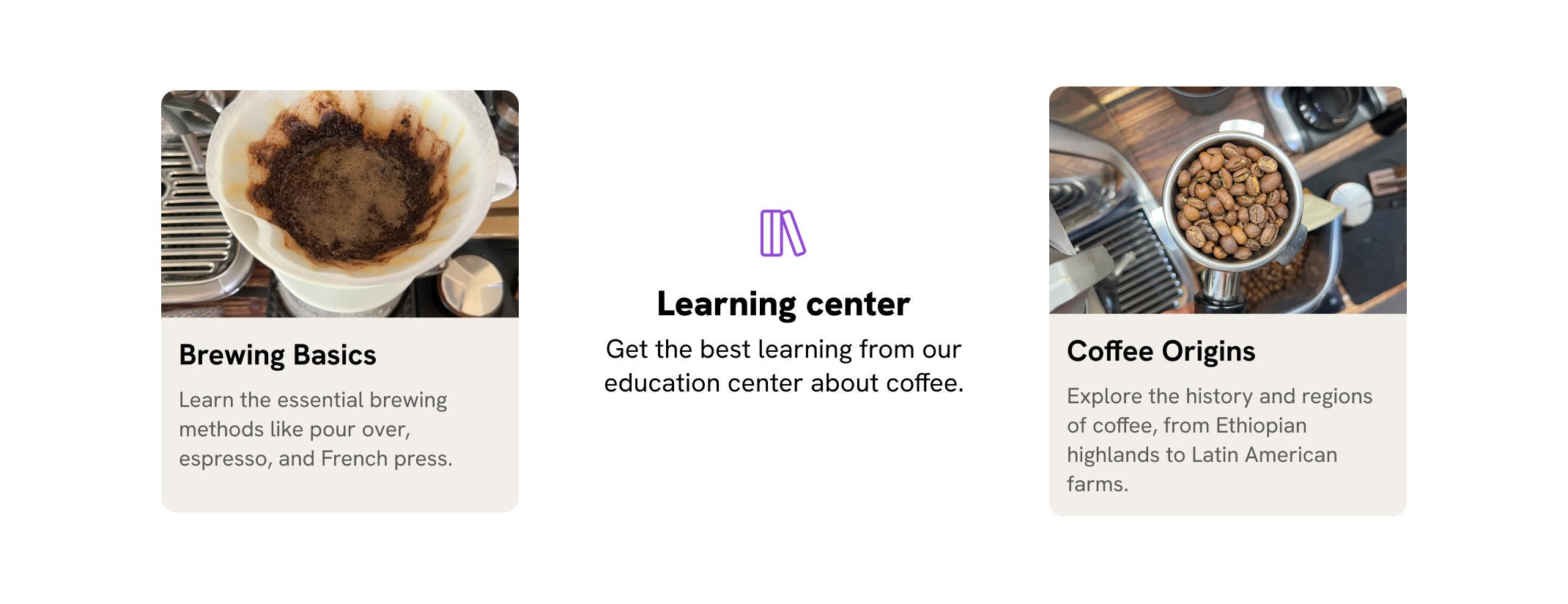

How to make a layout like this? Notice that the section header is part of the grid, or the card’s grid, to be specific.

Here is what we need to do:

• Check with CSS :has() if there are exactly 2 cards.
• If yes, we turn the .section into a grid with 3 columns. I named the areas, but it’s optional.
• Added display: contents to the .section-content to ungroup the cards and make them part of .section layout.
• Positioned the section header and carts each in their own area.

@media (min-width: 400px) { .section:has(.card-wrapper:last-child:nth-child(2)) { display: grid; grid-template-columns: 1fr 1.25fr 1fr; grid-template-areas: "card-1 header card-2"; .section-content { display: contents; } .section-header { grid-area: header; } .card-wrapper:nth-child(1) { grid-area: card-1; } .card-wrapper:nth-child(2) { grid-area: card-2; } } }

To learn more about display: contents, I wrote an interactive article about it. Check it out:

Set random positions with CSS random()

This is an experimental feature that is currently supported by Safari Technology Preview only.

For example, if the card has 4 items, we can set a random border radius to the image.

.section:has(.card-wrapper:nth-last-child(n + 4)) { .card-thumb { aspect-ratio: 1; border-radius: random(5px, 120px) random(15px, 200px) random(8px, 80px) random( 25px, 160px ) / random(10px, 60px) random(5px, 90px) random(15px, 75px) random(8px, 140px); } }

Toggle the video to see it in action if you’re not on Safari TP.

What’s nice is that this falls back nicely to a zero radius, or we can add a rounded radius as a fallback, too.

Conclusion

In this article, I took a typical section design and made it more dynamic with container queries, has, clamp, and grid. It’s an example of the potential of modern CSS, and this was just one section.

I hope you enjoyed this article. If you have any questions, feel free to ask via BlueSky, Twitter (X), or reach out via email at [email protected].

Thank you for reading!
