X-59 Supersonic Test Jet Takes to the Air

Perhaps the most extraordinary-looking aircraft to have taken to the air in many years, the X-59 Quiet Supersonic Technology experimental test aircraft, or QueSST, has made its first flight. Much is resting on the test program that has now been kicked off, with the future of supersonic passenger flight arguably dependent on its successful outcome.

The first flight took place at the U.S. Air Force’s Plant 42 in Palmdale, California. Photographer Matt Hartman has shared pictures with us of the X-59 after its departure from Plant 42, as seen at the top of this story and below.

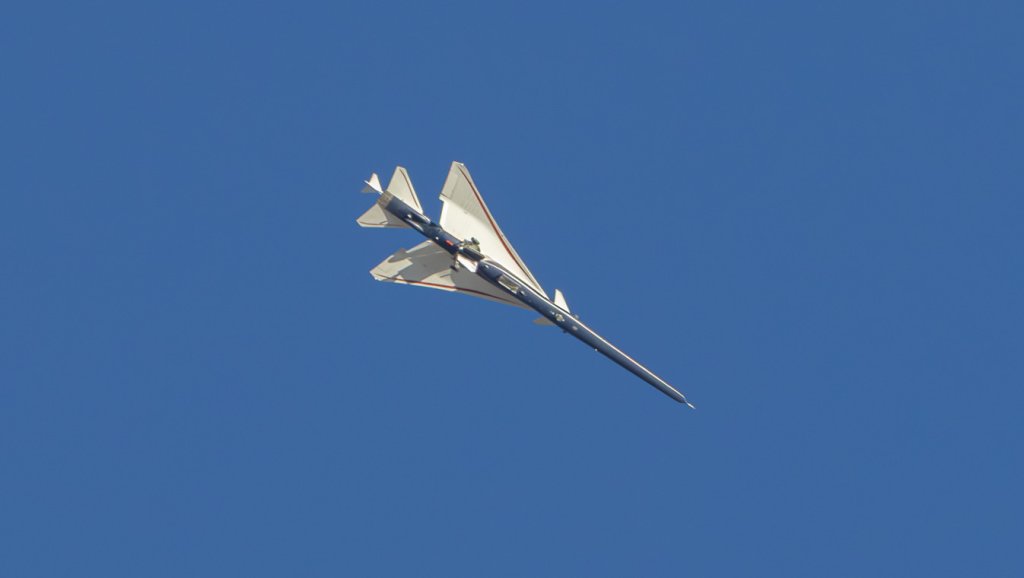

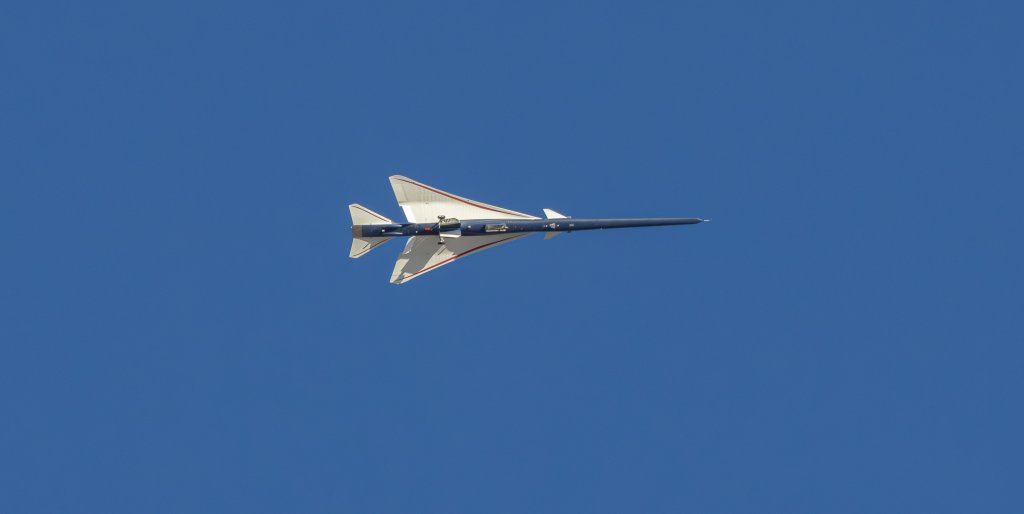

The X-59 in flight. Matt Hartman

Another view of the X-59 in the skies above Palmdale, California. Matt Hartman

The X-59 seen as it took off from Plant 42. Matt Hartman

It has been planned that after the X-59’s first flight, it will be moved to NASA’s Armstrong Flight Research Center, which is collocated with Edwards Air Force Base in California, for further test flights.

Ahead of the first flight, NASA had outlined its plans for the milestone sortie. This would be a lower-altitude loop at about 240 miles per hour to check system integration. It will be followed by the first phase of flight testing, focused on verifying the X-59’s airworthiness and safety. During subsequent test flights, the X-59 will go higher and faster, eventually exceeding the speed of sound.

Although there were no public announcements, the first flight had been expected earlier this month but was scrubbed for unknown reasons. TWZ has reached out to NASA for more information in relation to today’s flight.

A product of Lockheed Martin’s famed Skunk Works advanced projects division, the X-59 was rolled out at the Skunk Works facility within Palmdale in January 2024.

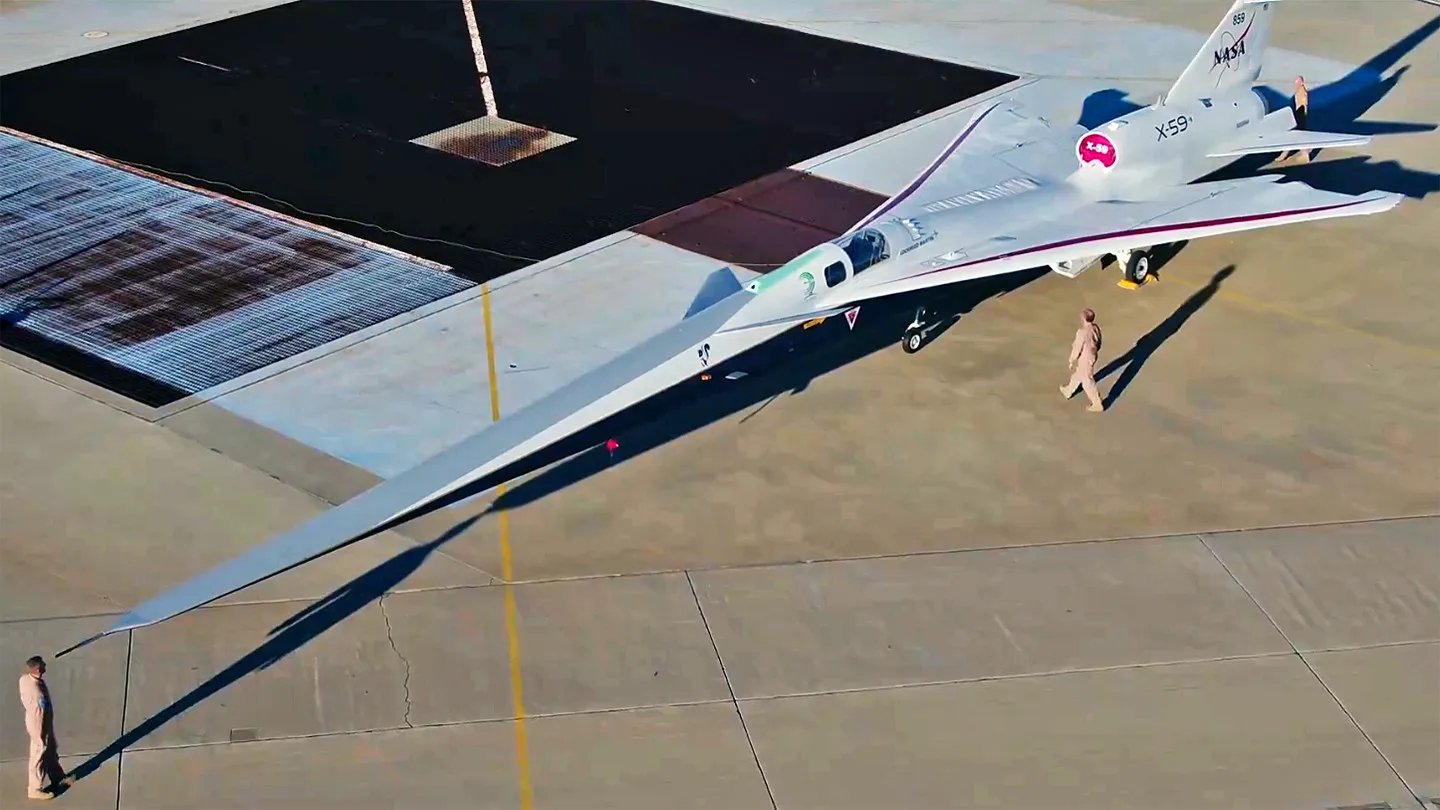

Rollout of the X-59 at the Skunk Works facility within Palmdale on January 12, 2024. NASA screencap

“In just a few short years, we’ve gone from an ambitious concept to reality,” NASA Deputy Administrator Pam Melroy said at the time. “NASA’s X-59 will help change the way we travel, bringing us closer together in much less time.”

The first flight was preceded by integrated systems testing, engine runs, and taxi testing.

Taxi tests began at Palmdale this summer, marking the first time that the X-59 had moved under its own power. NASA test pilot Nils Larson was at the controls for the aircraft’s first low-speed taxi test on July 10, 2025.

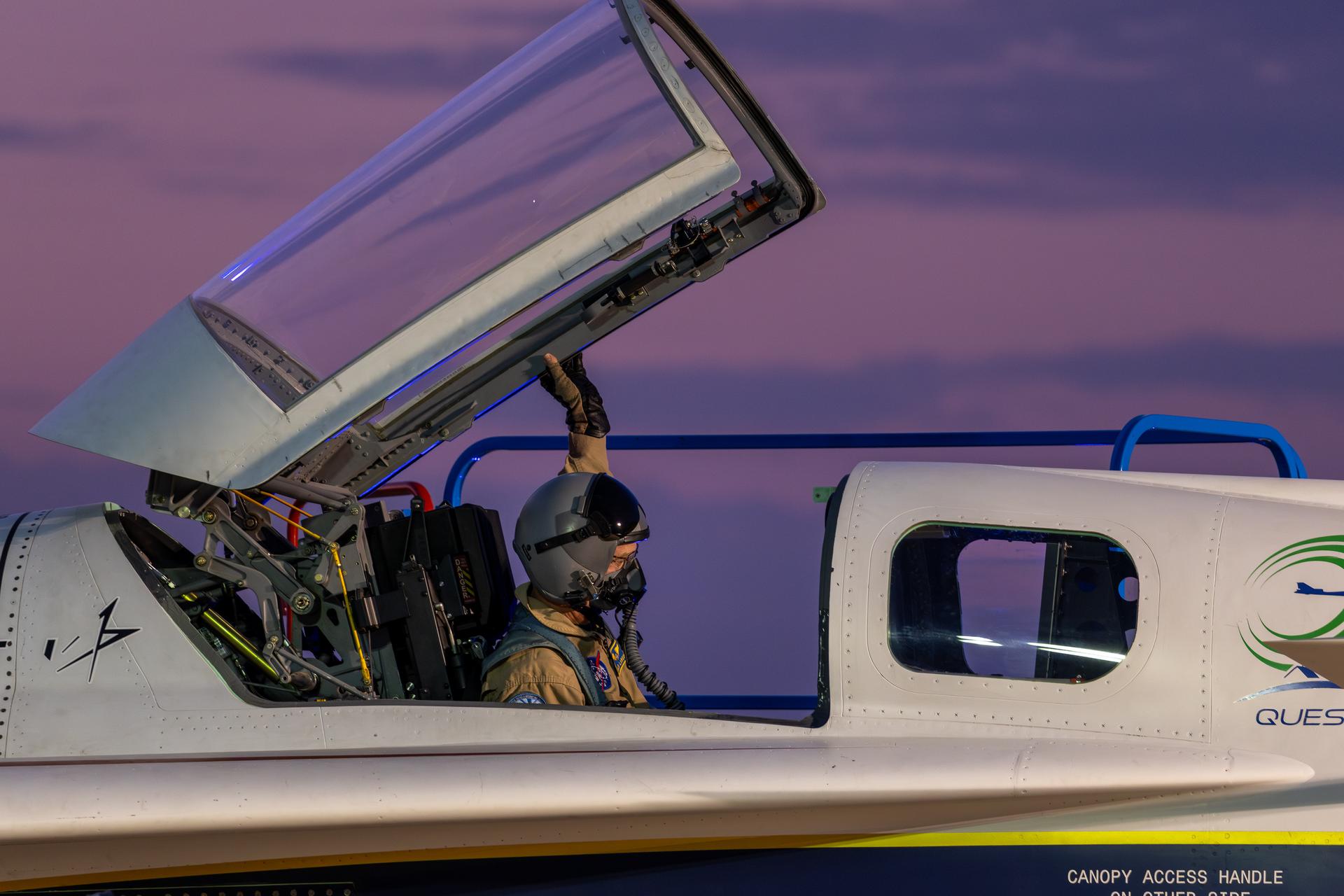

NASA test pilot Nils Larson lowers the canopy of the X-59 during ground tests at Palmdale in July 2025. Lockheed Martin

The X-59 project was kicked off back in 2016, and NASA had originally hoped that the aircraft would take to the air for the first time in 2020. The targeted first flight then slipped successively to 2023, to 2024, and then to this year.

Among other issues, NASA blamed the schedule slip on “several technical challenges identified over the course of 2023,” which the QueSST team then had to work through.

Once at Armstrong, the X-59 will be put through its paces as the centerpiece of NASA’s Quiet Supersonic Technology mission. This is an exciting project that TWZ has covered in detail over the years.

The main goal of QueSST is to prove that careful design considerations can reduce the noise of a traditional sonic boom to a “quieter sonic thump.” If that can then be ported over to future commercial designs, it could solve the longstanding problem of regulations that prohibit supersonic flight over land.

The only genuinely successful supersonic airliner was the Anglo-French Concorde. Even that aircraft had an abbreviated career, during which it struggled with enormously high operating costs and an ever-shrinking market.

Even before Concorde entered service, however, commercial supersonic flight over the United States had been prohibited, under legislation introduced in 1973. Even the U.S. military faces heavy restrictions on where and when it can operate aircraft above the speed of sound within national airspace. Similar prohibitions on supersonic flight exist in many other countries, too.

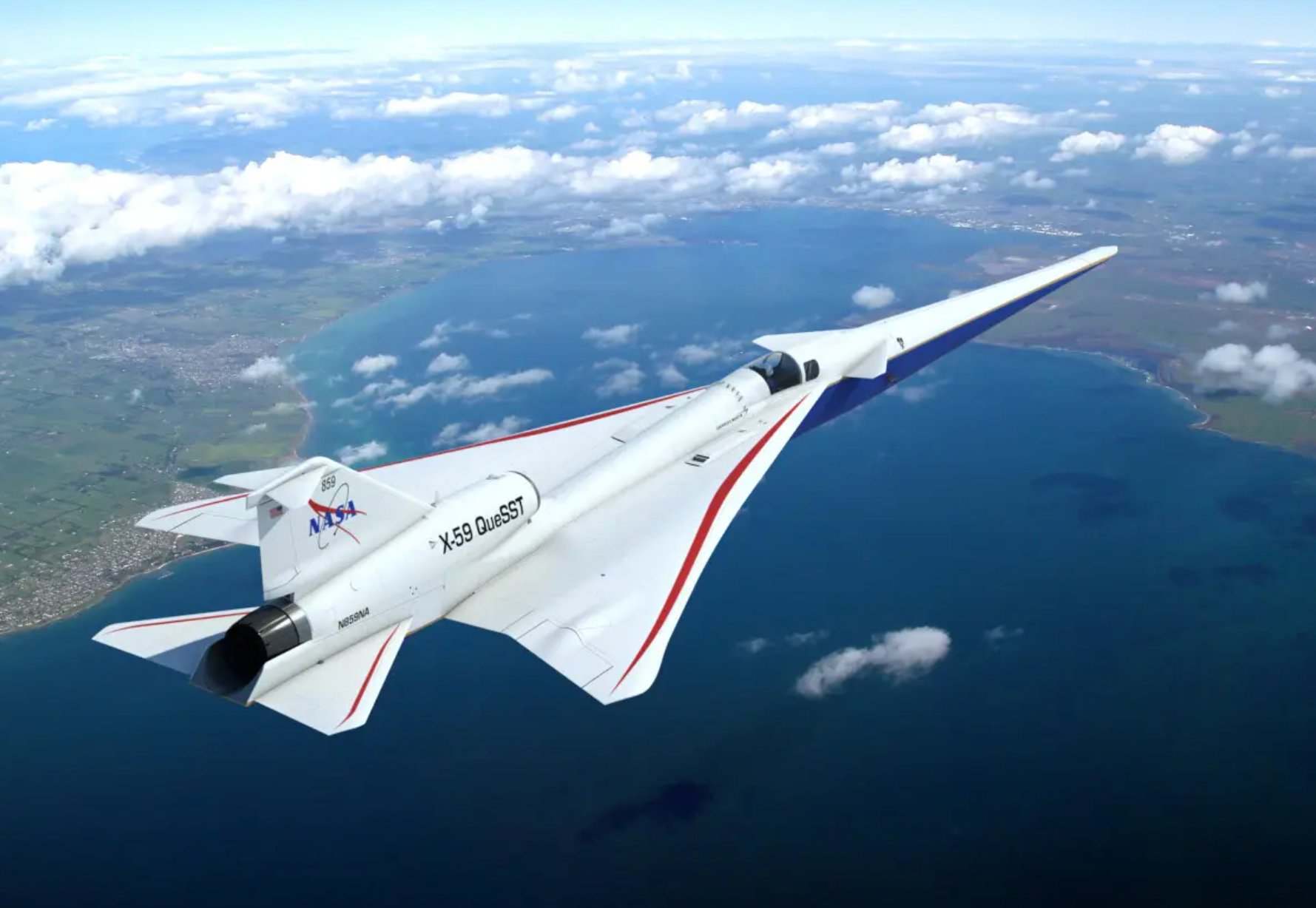

An earlier rendering showing the X-59 in flight. Lockheed Martin

NASA’s test program aims to push the X-59 to a speed of Mach 1.4, equivalent to around 925 miles per hour, over land. At that point, it’s hoped that its unique design, shaping, and technologies will result in a much quieter noise signature.

The second phase of the QueSST program will be about ensuring that the core design works as designed and will include multiple sorties over the supersonic test range at Edwards Air Force Base.

The third and final phase will be the Community Response Study, in which the X-59 will be flown over different locations in the United States. Individuals in those different communities will provide feedback on the noise signature via push notifications to cell phones.

A colorized schlieren image of a small-scale model of the X-59, taken inside NASA Glenn Research Center’s Supersonic Wind Tunnel during a boom test. NASA

At one time, the third phase was planned to take place between 2025 and 2026, but, as previously outlined, the program as a whole has now been delayed.

In the past, we have looked at some of the remarkable features that make the X-59 a test jet like no other.

Most obviously, there is its incredibly long nose, which accounts for around a third of its overall length of 99.7 feet. Meanwhile, its wingspan measures just under 30 feet. The idea behind the thin, tapering nose, which you can read about in detail here, is that the shock waves that are created in and around the supersonic regime will be dissipated. It is these shock waves that would otherwise produce a very audible sonic boom on the ground.

A head-on view of the X-59 before it received its paint scheme. Lockheed Martin via NASA

The X-59’s nose also dictates its unusual cockpit arrangement, with the pilot being located almost halfway down the length of the aircraft, with no forward-facing window at all. The pilot instead relies on the eXternal Vision System (XVS), which was specially developed for the aircraft, to see the outside world. This makes use of a series of high-resolution cameras that feed into a 4K monitor in the cockpit, something that we have also discussed in depth in the past.

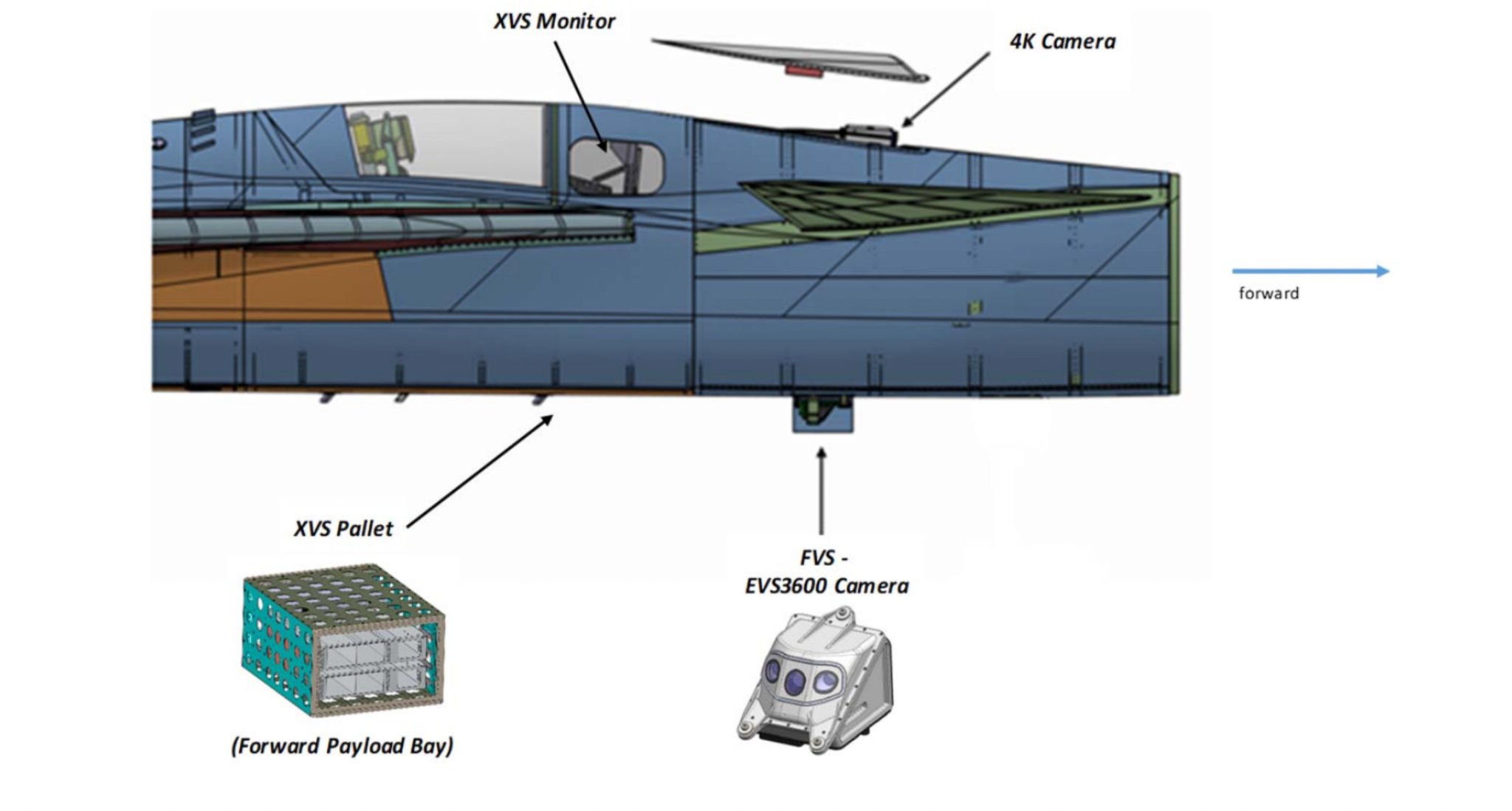

Components of the XVS. NASA

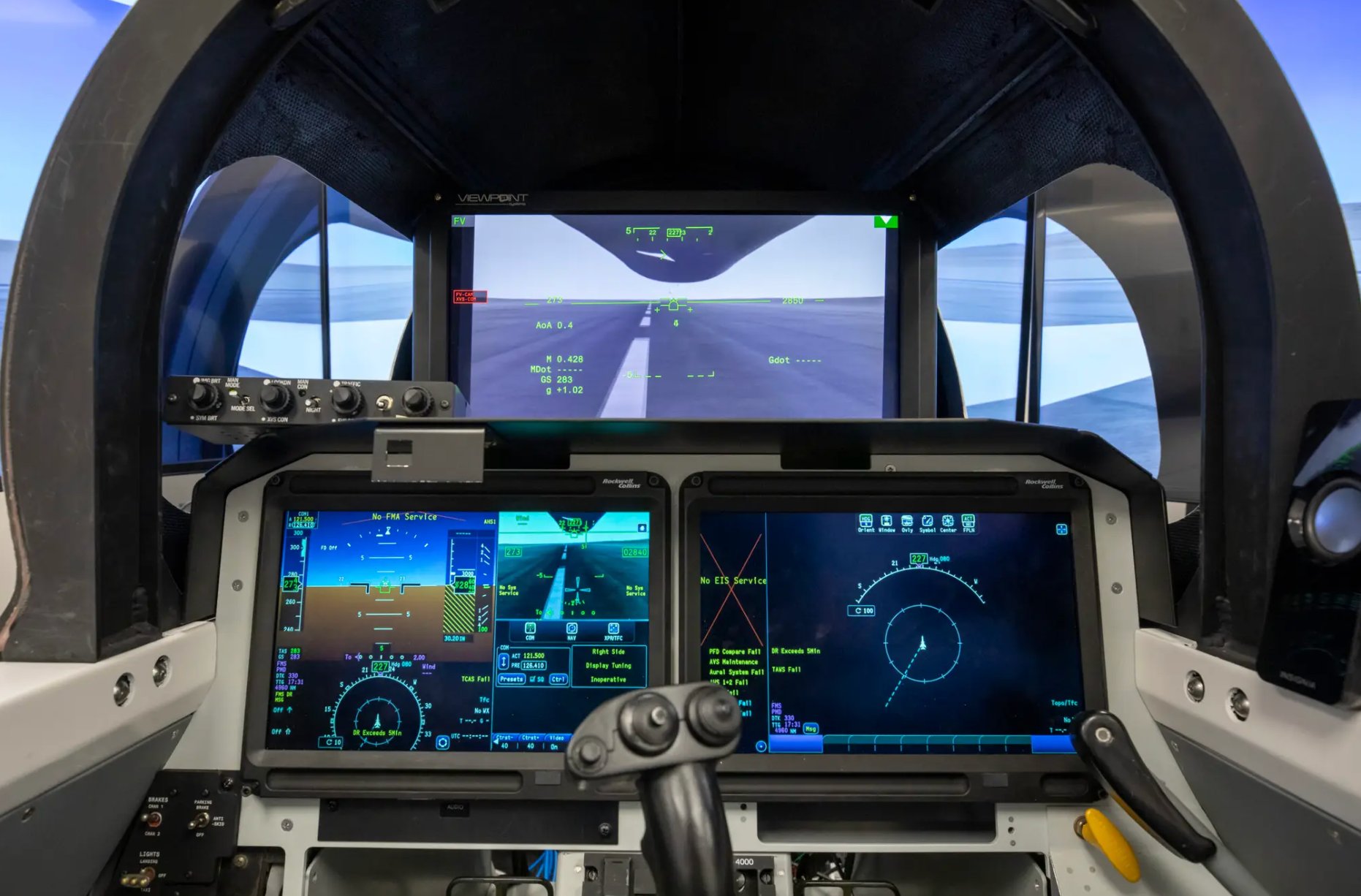

A graphic render of the inside of the X-59 cockpit, including the XVS. Lockheed Martin

Another noteworthy feature is the location of the X-59’s powerplant, on top of the rear of the fuselage, which ensures a smooth underside. This is another part of the jet that has been tailored to address supersonic shockwaves, helping prevent them from merging behind the aircraft and causing a sonic boom. The powerplant itself is a single F414-GE-100 turbofan, a variant of the same engine found on the F/A-18E/F Super Hornet.

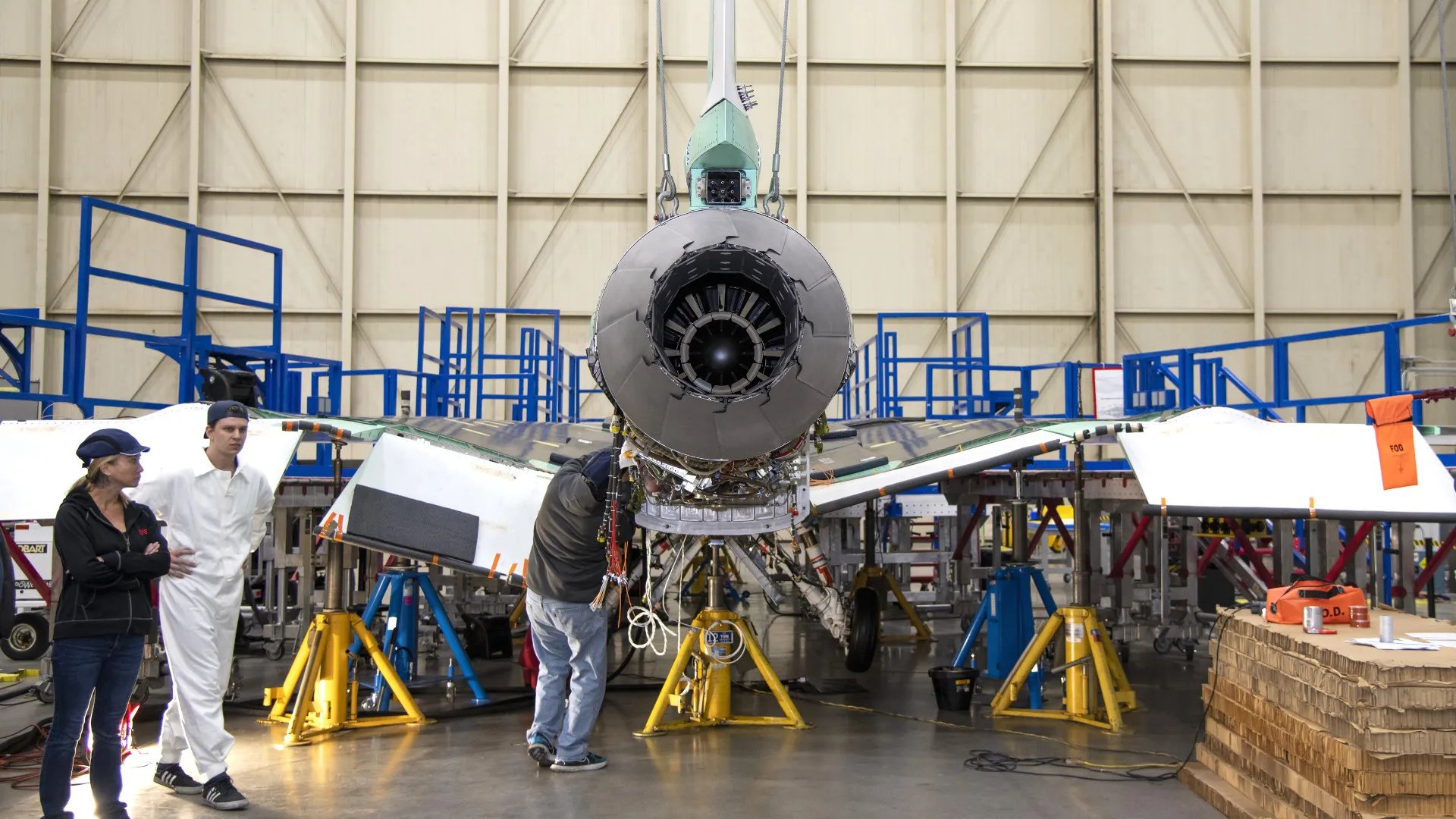

The X-59’s single F414-GE-100 turbofan engine is installed. NASA/Carla Thomas

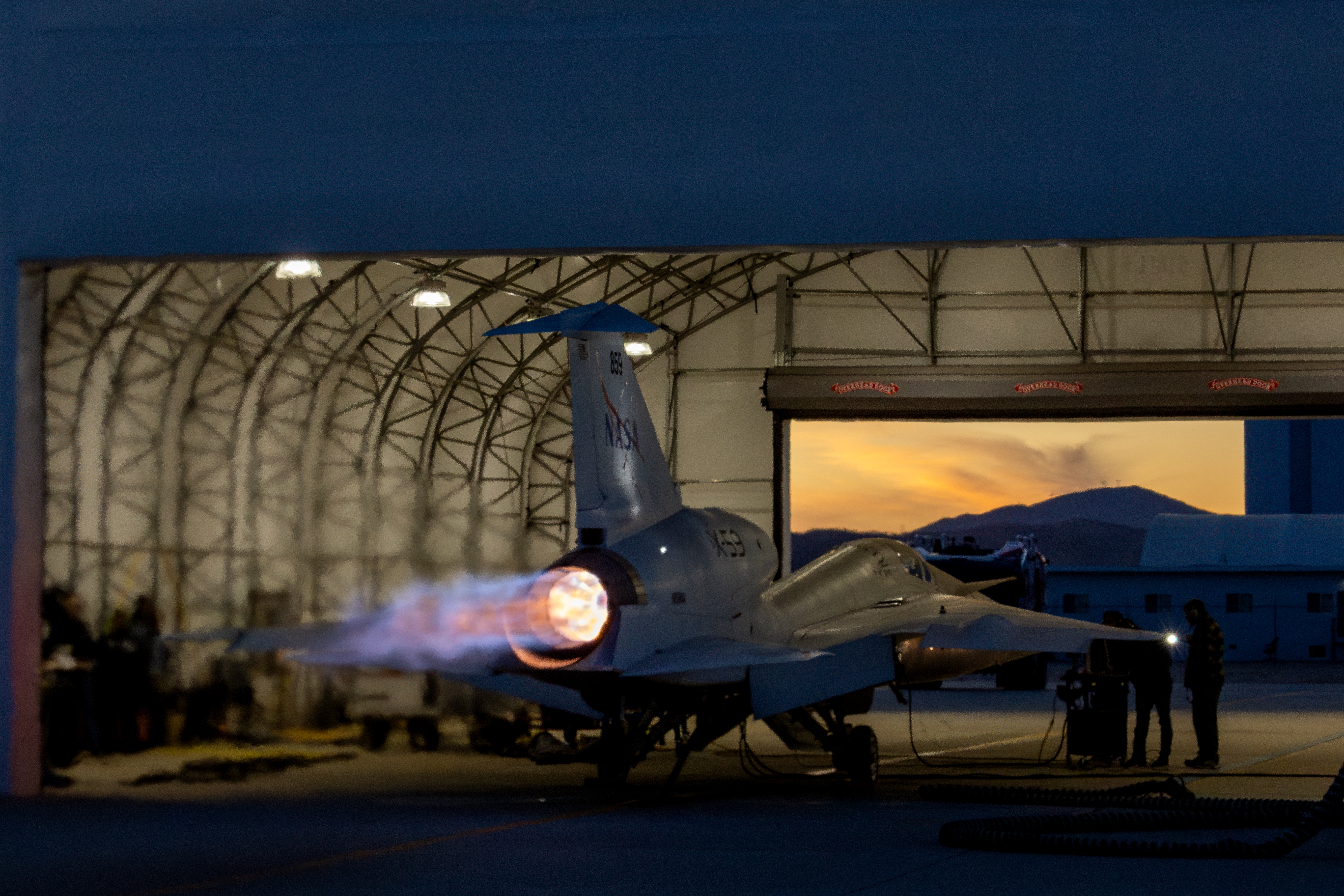

The X-59’s afterburner lights up the dusk at Palmdale, California. Lockheed Martin/Gary Tice Garry Tice

Meanwhile, various items found on the X-59 are more familiar. For example, the canopy and elements of the pilot’s seat are taken from the T-38 Talon, the landing gear is borrowed from an F-16, and the life-support system is adapted from that used in the F-15 Eagle.

If all proceeds as planned with the QueSST program, NASA should be able to demonstrate that the rules that currently prohibit commercial supersonic flight over land, both in the United States and elsewhere, can be adjusted.

However, whether that potential regulatory change is enough to spur the successful development of future commercial high-speed aircraft designs remains a big question.

After all, aside from Concorde, the quest to successfully introduce a supersonic passenger transport is one that has otherwise been littered with failures. Many will now be pinning their hopes on the X-59 helping to reverse that trend.

Update: 4:20 PM Eastern –

Lockheed Martin has now put out a press release about the X-59’s first flight. As planned, the aircraft has now arrived at NASA’s Armstrong Flight Research Center.

“The X-59 performed exactly as planned, verifying initial flying qualities and air data performance on the way to a safe landing at its new home,” according to the release. “Skunk Works will continue to lead the aircraft’s initial flight test campaign, working closely with NASA to expand the X-59’s flight envelope over the coming months. Part of this test journey will include the X-59’s first supersonic flights, where the aircraft will achieve the optimal speed and altitude for a quiet boom. This will enable NASA to operate the X-59 to measure its sound signature and conduct community acceptance testing.”

Lockheed Martin

“We are thrilled to achieve the first flight of the X-59,” O.J. Sanchez, Vice President and General Manager of Lockheed Martin’s Skunk Works, said in a statement. “This aircraft is a testament to the innovation and expertise of our joint team, and we are proud to be at the forefront of quiet supersonic technology development.”

“X-59 is a symbol of American ingenuity. The American spirit knows no bounds. It’s part of our DNA – the desire to go farther, faster, and even quieter than anyone has ever gone before,” Sean Duffy, Secretary of Transportation and acting NASA Administrator, also said in a statement. “This work sustains America’s place as the leader in aviation and has the potential to change the way the public flies.”
