Seagate still HAMRing away at the 100 TB disk drive decades later

Feature Seagate says it has a clear way forward to 100 TB disk drives using 10 TB per platter technology, but HAMR tech is nearly 25 years old and full mass production is still not underway. What has been taking so long?

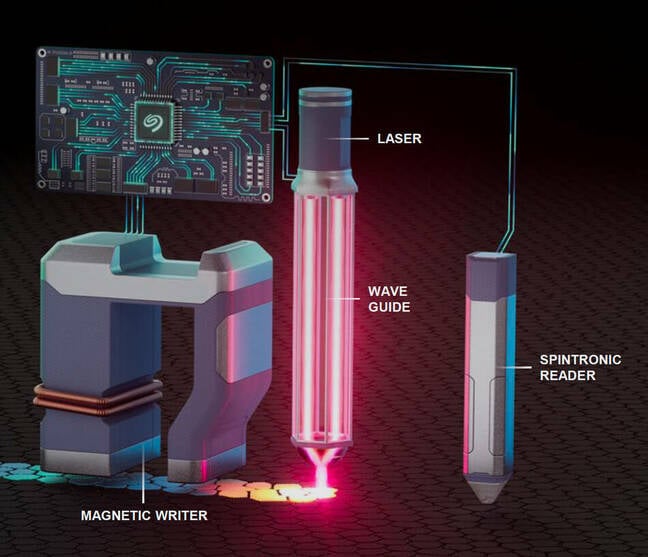

HAMR (heat-assisted magnetic recording) technology is used to write data to a granular iron platinum medium that can support stable bit storage at more than 1 Tb/in² area density – but only when the bit areas are heated using a laser. That's 3-3.6 TB per platter with Seagate's ten-platter Exos M drives using Mozaic 3+ HAMR technology.

Traditional perpendicular magnetic recording (PMR) uses room-temperature writing and cannot support such extreme areal densities; the bits become unstable. Western Digital has found a way to push PMR's density to 2.9 TB per platter by using microwave-assisted magnetic recording (MAMR), as has Toshiba, the third major disk drive manufacturer. Both Toshiba and Western Digital are positioning HAMR as their next tech transition to increased areal density but are years behind Seagate in developing the technology.

Seagate is currently shipping 30 TB conventionally recorded Exos M HAMR drives and both 32 and 36 TB shingled magnetic recording (SMR) drives. These have blocks of partially overlapping write tracks to increase track density and thus overall capacity, but with a slower rewrite speed as entire blocks of tracks have to be rewritten.

The company should have a clear drive capacity advantage, but it does not because its HAMR technology has proven extraordinarily difficult to bring into mass production and it has one less platter than competing drives. By 2012, Seagate predicted it could make 1 Tb/in² in HAMR drives after a successful demo. That did not happen but it managed to make 16 TB HAMR drives and was sampling them in 2019. They did not make it to mass production either, and a 20 TB technology was the next development. It too did not last long.

CEO Dave Mosley told investment analysts in 2020 that Seagate was stepping up to 24 TB HAMR drives. By 2023, a 30 TB HAMR drive was said to be coming. This was actually unveiled in January 2024, with the tech branded Mozaic 3+, referring to the 32 and then 36 TB SMR variants.

Even then, qualification by its main hyperscaler customers, the cloud service providers (CSPs), took many months, with the first CSP giving it the all-clear to volume ship almost a year later, in December 2024. Now, five months later, Seagate has announced that three of the top eight CSPs have completed qualification of its drives, with exabyte-scale volume shipments. Mosley says the remaining five are expected to be qualified in a year. Such qualifications have taken an extraordinarily long time.

It is likely that manufacturing yield and drive reliability challenges contributed to the delays to HAMR productization and qualification again and again. Here we are, with general mass production of HAMR drives still in an early phase, almost a quarter of a century after Seagate did its first public HAMR tech reveal, and it is still not ready, even though it has shipped more than 1 million HAMR drives to date. The investment Seagate has made in this enormously complicated technology is huge.

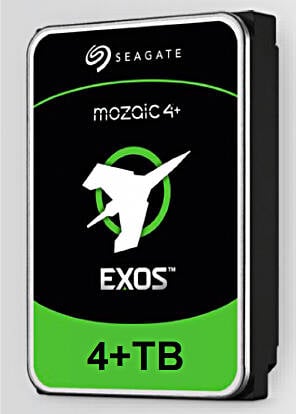

The pace is picking up. Seagate is now saying 40-plus TB drive samples (Mozaic 4+) have been delivered and it aims to produce a 12-44 TB capacity range product. Actual production shipments are expected later this year or early 2026 with increased volume shipping in the first half of 2026. It says a 5-plus TB (Mozaic 5+) generation is expected in late 2027 or early 2028.

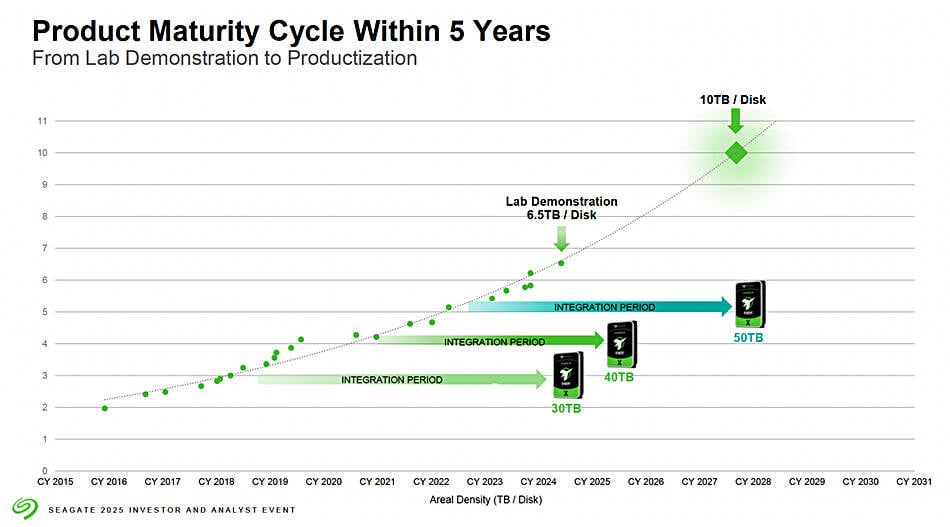

The company has demonstrated a 6.5 TB per platter drive and says it typically takes five years to move from demo to production, meaning Mozaic 6+ product availability in 2030. And it claims it has visibility to 10-plus TB per platter, meaning 100 TB disk drives, which could be productized at some point around 2033, assuming a 2028 demo product.

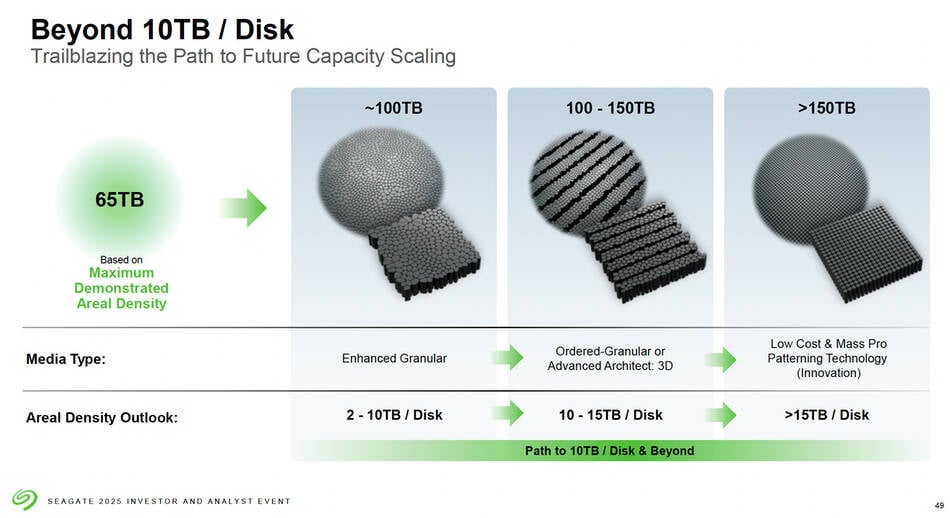

Seagate believes its HAMR recording medium could even support up to 15 TB per platter, implying 150 TB conventional and potentially 180 TB SMR disk drives, with better patterned recording media. The HAMR capacity marketing continues at full pace.

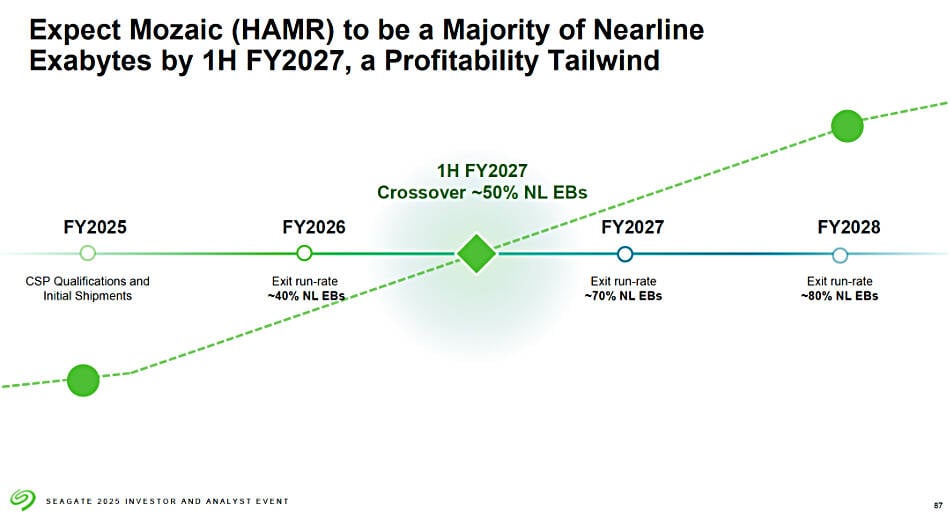

Seagate now claims that more than 40 percent of its disk drive exabytes will be with HAMR drives by the end of its fiscal 2026, the end of June in calendar 2026. The crossover to majority HAMR exabyte production should be in the first half of fiscal 2027 (by the end of calendar 2026) and more than 70 percent of HAMR exabytes should be shipping six months after that.

Of course, as we have just outlined above, Seagate has previously made several predictions about HAMR drive availability that were not ultimately achieved. The tech giant appears to have persistently underestimated how long it will take to productize HAMR technology and so reap the production cost benefit of having fewer platters and sliders at any capacity point than its two competitors.

CEO Mosley aims to use HAMR and its higher areal density to reinvent lower capacity drives with fewer platters and sliders, meaning 10-15 percent lower production costs.

• AI 'bubble' will burst 99 percent of players, says Baidu CEO
• Toshiba to shed 4,000 jobs as part of revitalization plan
• Thailand spins up approval for Western Digital to make more spinning rust
• Toshiba reveals 30TB disk drive to arrive by 2024

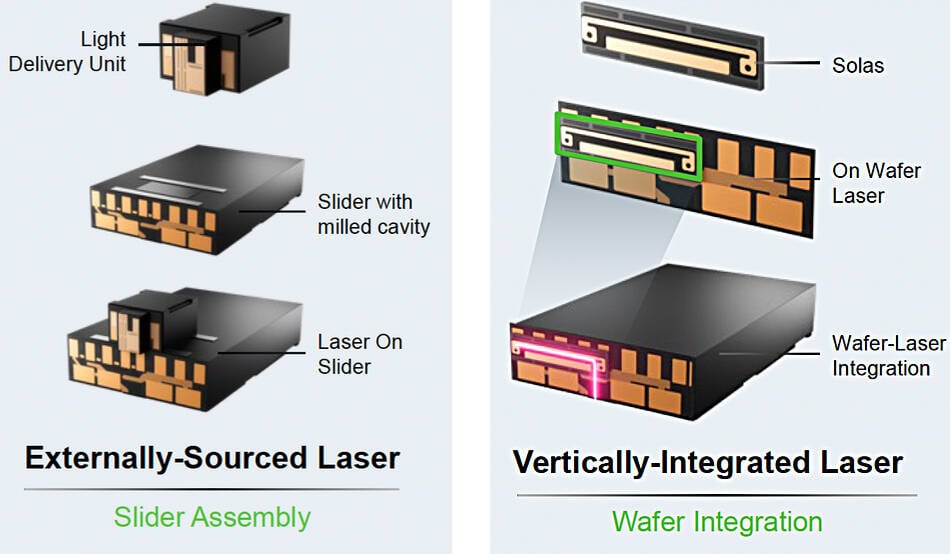

A laser integration tactic should reduce costs further. At present, Seagate ships a HAMR slider with an externally sourced laser attached. The intention is to build the laser itself on its own wafers and then bond it to the slider wafer, before the individual slider dies are cut.
